SOLD

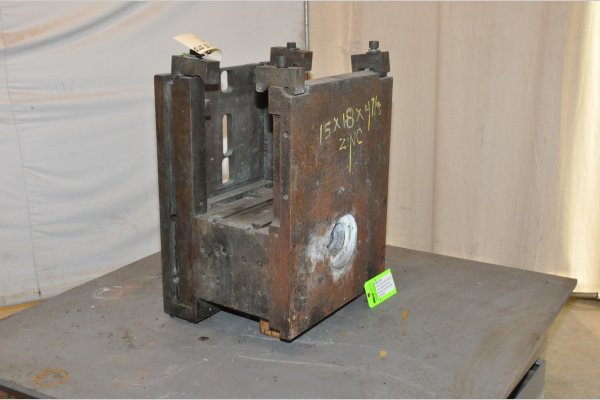

Used DME Model: DCS-1518-Z 1518 Inch Standard Duty, Single Unit, Hot Chamber Zinc master unit die holder

StatusSold
ManufacturerDME
ModelDCS-1518-Z
Size1518 Inch
Inventory NumberDCM-4718

DME - DCS-1518-Z 1518 Inch Standard Duty, Single Unit, Hot Chamber Zinc master unit die holder, Controls

View Available DME Die Cast Tooling

Questions? Call (847) 360-9170 and mention DCM-4718.

Features & Accessories

  • This is a Non-Standard Master Unit Die Holder - it was designed to hold 15x18 inserts up to 20 inches wide. Also, it is designed for inserts 4-7/8 inch thick rather than 4-3/8 inch thick. Priced accordingly!!
  • Quick Die Change - MUD
  • Standard Duty Design
  • Single Unit Holder - holds one insert
  • Hot Chamber Configuration
  • Ships from stock from our Waukegan warehouse

Item Specifications for DCM-4718

USMetric
Overall Width:17.875 inches (up to 20 inches wide)454.025 mm
Overall Length:24.000 inches609.600 mm
Overall Height (thickness):18.125 inches460.375 mm
Cover Half Thickness:6.75 inches171.45 mm
Ejector Half Thickness:11.375 inches288.925 mm
Insert Size - Cover Side:14.875 x 17.875 x 4.875 inches377.825 x 454.025 x 111.125 mm
Insert Size - Ejector Side:14.875 x 17.875 x 4.875 inches377.825 x 454.025 x 111.125 mm
Approximate Weight:1296 pounds589.09 kg

Documents

Description

Used, DME Model DCS-1518-Z 1518 Inch Standard Duty, Single Unit, Hot Chamber Zinc master unit die holder For_Sale, Features Include: Quick Die Change - MUD, Standard Duty Design, Single Unit Holder - holds one insert, Hot Chamber Configuration, Ships from stock from our Waukegan warehouse, controls, second Hand, DCM-4718

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
