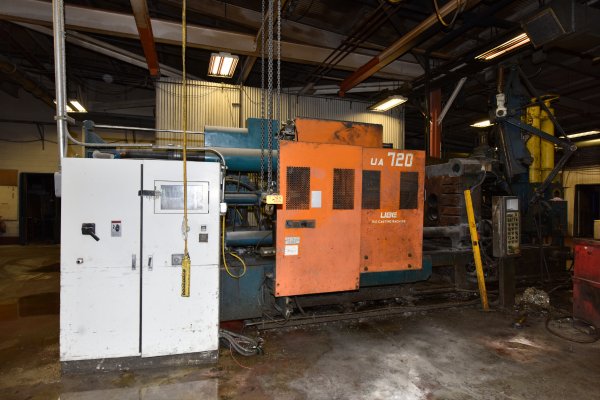

Used Ube Model: UA 720 720 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 6| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Ube |
| Model | UA 720 |
| Size | 720 US Tons |
| Inventory Number | DCM-4660 |
Ube - UA 720 720 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Ube Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4660.
Features & Accessories
- Fully Automatic Top Operator Side Automatic Tie Bar Pulling System
- Hydraulic Bumper Plate Ejection System - Three (3) Core Circuits with two (2) on moving platen and one (1) on fixed platen
- Ube HMI Operator Interface with color LCD Display
- Factory Integrated Ube Operatorside Automatic Ladle
- Electronic Servo-Valve S-DDV Shot Control System (Servo Direct Drive) including Ube Flashless Impact Control system
- Ube Unique Meter-in/Meter-Out Shot control system - Allows for larger castings for a given size of machine
Item Specifications for DCM-4660
| US | Metric | |
| Clamping Force: | 750 tons | 6,400 kN |
| Platen Size: | 47 x 47 inches | 1,200 x 1,200 mm |
| Distance Between Tie Bars: | 33 x 33 inches | 838 x 838 mm |
| Die Stroke: | 26 inches | 660 mm |
| Die Thickness (min - max): | 13.8 - 35.4 inches | 350 - 900 mm |
| Ejection Force: | 34.1 tons | 31 tons |
| Ejection Stroke: | 0 - 4.9 inches | 0 - 125 mm |
| Shot Force (max - min): | 61.6 - 30.8 tons | 56 - 28 tons |
| Shot Stroke: | 27.5 inches | 750 mm |
| Plunger Tip Diameter (min - max): | 2.95 - 3.74 inches | 75 - 95 mm |
| Shot Positions: | center to -9.8 inches | center to -250 mm |
| Machine Weight: | 52,800 Pounds | 24,000 KG |
Documents
- Ube 850 ISPDF · 428 KB
Description
Used, Ube Model UA 720 720 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Fully Automatic Top Operator Side Automatic Tie Bar Pulling System, Hydraulic Bumper Plate Ejection System - Three (3) Core Circuits with two (2) on moving platen and one (1) on fixed platen, Ube HMI Operator Interface with color LCD Display, Factory Integrated Ube Operatorside Automatic Ladle, Electronic Servo-Valve S-DDV Shot Control System (Servo Direct Drive) including Ube Flashless Impact Control system, Ube Unique Meter-in/Meter-Out Shot control system - Allows for larger castings for a given size of machine, Ube controls, second Hand, DCM-4660
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
