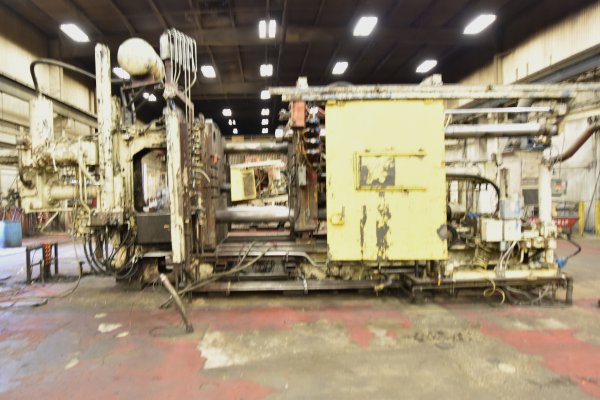

Used Prince Model: 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 20| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 940 CCA |
| Size | 1000 Tons |
| Inventory Number | DCM-4656 |
Prince - 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4656.
Features & Accessories
- Prince Automatic Tie Bar Pulling System
- Prince Individual Die Bar Tonnage Adjustment System
- 2 Core Circuits on Moving Platen - 1 on Fixed Platen
- Prince Binary Shot Control System with close coupled hydraulic Accumulators
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Insert For Shot Position Center, -3, -9 and -12 inches Below Center Shot Positions
Item Specifications for DCM-4656
| US | Metric | |
| Rated Tonage | 1,000 tons | 909 tons |
| Tie Bar Diameter | 8 inches | 203.2 mm |
| Clearance Between Tie bars | 40 inches | 1016 mm |
| Front Platen Size (T x W x H) | 15.5 x 64 x 74 inches | 393 x 1625.6 x 1879.6 mm |
| Moving Platen Size (T x W x H) | 13.75 x 64 x 64 inches | 349.3 x 1625.6 x 1625.6 mm |
| Die Thickness (min. - max.) | 18 - 38 inches | 457 - 965 mm |
| Die Stroke | 25 inches | 635 mm |
| Shot Cylinder: | 6.5 inch bore, 4.0 inch rod, 24 - 30 inch stroke | 165 mm bore, 101 mm rod, 609 - 762 mm stroke |
| Ejection Force/Stroke: | 21.5 tons/6 inches | 19.5 tons/152 mm |
| Motor Size | 100 hp | 74.6 kw |
| Machine Size (L x W x H) | 29.9 x 8.6 x 11 feet | 9.1 x 2.6 x 3.4 m |
| Machine Weight | 120,000 pounds | 54,545 kg |
Description
Used, Prince Model 940 CCA 1000 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Prince Automatic Tie Bar Pulling System, Prince Individual Die Bar Tonnage Adjustment System, 2 Core Circuits on Moving Platen - 1 on Fixed Platen, Prince Binary Shot Control System with close coupled hydraulic Accumulators, Twin Cylinder Hydraulic Bumper Plate Ejection System, Insert For Shot Position Center, -3, -9 and -12 inches Below Center Shot Positions, Allen Bradley PLC 5/30 controls, second Hand, DCM-4656
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
