SOLD

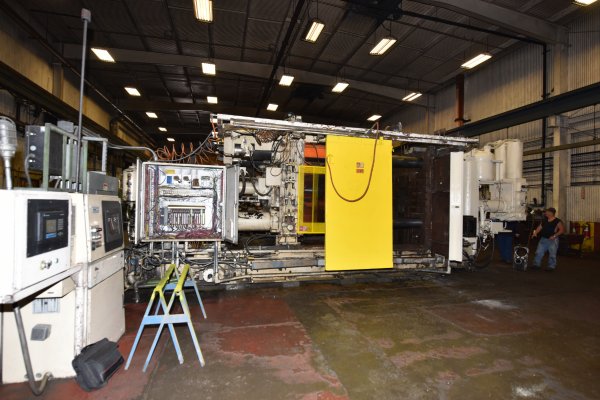

Used Prince Model: 1242 CCM 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerPrince
Model1242 CCM
Size1200 Ton
Inventory NumberDCM-4639

Prince - 1242 CCM 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Series Solid State Programmable with Prince Promanager Software Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4639.

Features & Accessories

  • Top Helper Side Fully Automatic Tie Bar Pulling System
  • Prince Binary II-M Shot Control System with optional Prince Low-Impact Capability with Allen Bradley PLC 5/30 Series Solid State Programmable with Prince ProManager Software
  • Twin Cylinder Hydraulic Bumper Plate Ejection and Three (3) Auxiliary Core Circuits on Moving Platen and One (1) Core Circuit on the Fixed Platen
  • Inserted Shot Position (removable shot position insert block)
  • Trabon Automatic Linkage Lubrication System
  • Just removed from Production - Can be dry-cycled for customers

Item Specifications for DCM-4639

USMetric
Rated Tonnage1200 tons1088 tons
Tie Bar Diameter9.5 inches241.3 mm
Clearance Between Tie bars42.5 x 42.5 inches1079.5 x 1079.5 mm
Front Platen Size (T x W x H)17.75 x 70 x 80 inches450.9 x 1778 x 2032 mm
Moving Platen Size (T x W x H)15.75 x 70 x 70 inches400 x 1778 x 1778 mm
Die Thickness (min. - max.)24 - 44 inches609.6 - 1117.6 mm
Die Stroke27 inches685.8 mm
Shot PositionsCenter to -14 inchesCenter to -355 mm
Machine ControlAllen Bradley PLC 5/30 Series Solid State Programmable with Prince ProManager SoftwareAllen Bradley PLC 5/30 Series Solid State Programmable with Prince ProManager Software
Motor Size100 hp74.6 kw
Machine Size (L x W x H)35.6 x 8.6 x 12.6 feet10.9 x 2.6 x 3.8 m
Machine Weight155,000 pounds70,306 kg

Description

Used, Prince Model 1242 CCM 1200 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Top Helper Side Fully Automatic Tie Bar Pulling System, Prince Binary II-M Shot Control System with optional Prince Low-Impact Capability with Allen Bradley PLC 5/30 Series Solid State Programmable with Prince ProManager Software, Twin Cylinder Hydraulic Bumper Plate Ejection and Three (3) Auxiliary Core Circuits on Moving Platen and One (1) Core Circuit on the Fixed Platen, Inserted Shot Position (removable shot position insert block), Trabon Automatic Linkage Lubrication System, Just removed from Production - Can be dry-cycled for customers, Allen Bradley PLC 5/30 Series Solid State Programmable with Prince Promanager Software controls, second Hand, DCM-4639

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
