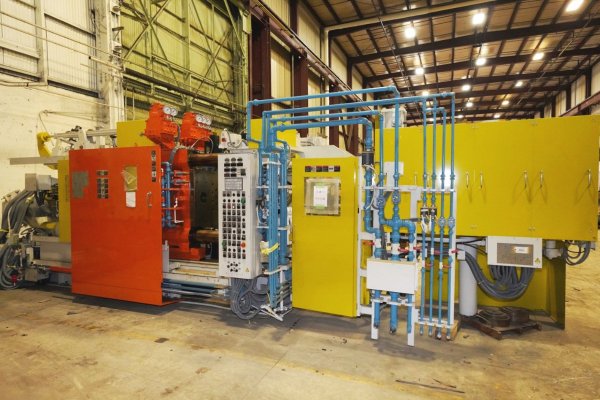

Used Toshiba Model: DC-650R-EM 650 (6500kN) (663 Metric Ton) Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 18| Status | Sold |
|---|---|
| Manufacturer | Toshiba |
| Model | DC-650R-EM |
| Size | 650 (6500kN) (663 Metric Ton) |
| Inventory Number | DCM-4629 |
Toshiba - DC-650R-EM 650 (6500kN) (663 Metric Ton) Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Toshiba TOS-Cast Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4629.
Features & Accessories
- Machine has never been installed - Unused; Manufactured New in 2018. NOTE: Machine has no control panel - will need a new control panel. Call or email for details
- Toshiba 888 TOS Cast Machine Control System
- Fully Automatic Tie Bar Puling system on Top Two Tie Bars
- Hydraulic Bumper Plate Ejection System
- Five (5) Axillary Hydraulic Side Core Circuits on Moving Platen, Two Core Circuits on Fixed Platen
- Electric Powered Motorized Die Height Adjustment System, Air Safety Ratchet Device, Automatic Lubrication System
- Automatic Die Clamping System - Factory Installed
Item Specifications for DCM-4629
| US | Metric | |
| Locking Force: | 720 tons | 663 tons - 6500kN |
| Platen Size: | 47.25 x 47.25 inches | 1200 x 1200 mm |
| Tie Bar Diameter: | 6.3 inches | 160 mm |
| Clearance Between Tie Bars (V x H): | 33.46 inches x 33.46 inches | 850 mm x 850 mm |
| Die Thickness (max - min): | 35.43 - 13.78 inches | 900 - 350 mm |
| Die Stroke: | 25.98 inches | 660 mm |
| Injection Stroke & Position: | 26.38 inches stroke, -6.89 below ceneter | 670 mm stroke, -175 mm below center |
| Injection Speed: | 1.2 - 275 Inches Per Second | 0.03 - 7.0 Meters Per Second |
| Ejection Stroke & Ejection Force: | .39 - 4.9 inches stroke, 33 tons ejector force | 10 - 125 mm stroke, 30 metric ton force |
| Main Motor | 50 hp | 37 kw |
| Machine Weight | 66,200 pounds | 30,000 kg |
| Machine Dimensions (L x W x H) | 26 x 8.5 x 10.7 feet | 7.92 x 2.6 x 3.2 meters |
Description
Used, Toshiba Model DC-650R-EM 650 (6500kN) (663 Metric Ton) Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Toshiba 888 TOS Cast Machine Control System, Fully Automatic Tie Bar Puling system on Top Two Tie Bars, Hydraulic Bumper Plate Ejection System, Five (5) Axillary Hydraulic Side Core Circuits on Moving Platen, Two Core Circuits on Fixed Platen, Electric Powered Motorized Die Height Adjustment System, Air Safety Ratchet Device, Automatic Lubrication System, Automatic Die Clamping System - Factory Installed, Toshiba TOS-Cast controls, second Hand, DCM-4629
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
