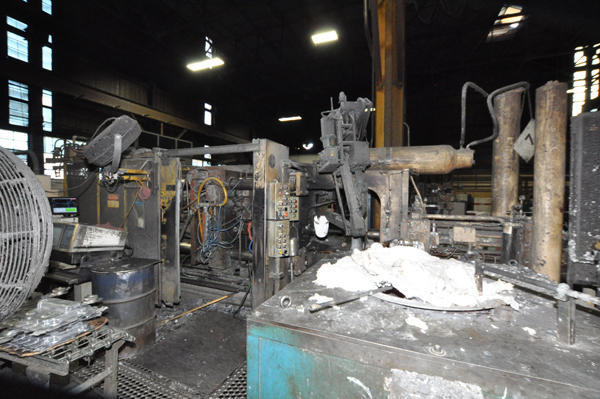

Used Ex-Cell-O B&T Model: DC-700 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 15| Status | Sold |
|---|---|
| Manufacturer | Ex-Cell-O B&T |
| Model | DC-700 |
| Size | 700 Ton |
| Inventory Number | DCM-4531 |
Ex-Cell-O B&T - DC-700 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/054 with PanelView 600 HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4531.
Features & Accessories
- Available as a complete automated die casting cell including: Rimrock 405 autoladle, Thermaltech crucible type aluminum melting & holding furnace, Shamrock automated into loading system and a Metal Mechanics 35 ton trim press
- Rebuilt by HPM in 1998 with complete, all new HPM II-800-A Shot System installed on machine
- Hydraulic Bumper Plate Ejection System
- Air Safety Ratchet
- Allen Bradly SLC 5/04 Controls with PanelView 600 HMI
- Hydraulic Motorized Die Height Adjustment
Item Specifications for DCM-4531
| US | Metric | |
| Locking Force: | 700 tons | 636 MT |
| Tie Bar Diameter: | 6.5 inches | 165 mm |
| Clearance Between Tie Bars: | 33 inches | 838 mm |
| Die Thickness (minimum - maximum): | 12 - 36 inches | 304 -914 mm |
| Die Stroke: | 23.5 inches | 596 mm |
| Moving Platen Size: | 54.5 x 54.5 inches | 1384 x 1384 mm |
| Shot Positions: | Center & -6 | Center & -152 mm |
| Power: | 480/3/60 | 480/3/60 |
| Machine Size: | 8 x 26 feet | 2.4 x 7.9 m |
| Machine Weight: | 72,000 pounds | 26.8 MT |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Video
Description
Used, Ex-Cell-O B&T Model DC-700 700 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Rebuilt by HPM in 1998 with complete, all new HPM II-800-A Shot System installed on machine, Hydraulic Bumper Plate Ejection System, Air Safety Ratchet, Allen Bradly SLC 5/04 Controls with PanelView 600 HMI, Hydraulic Motorized Die Height Adjustment, Allen Bradley SLC 5/054 with PanelView 600 HMI controls, second Hand, DCM-4531
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
