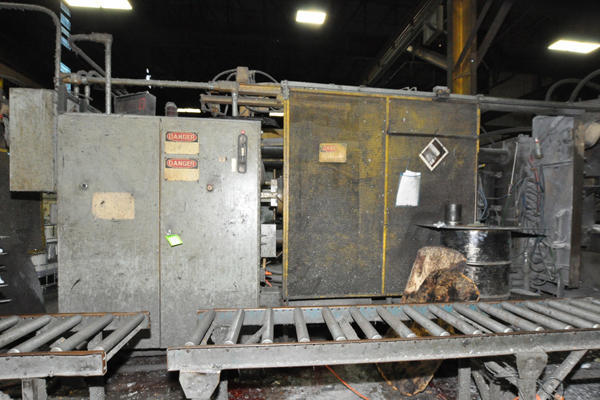

Used Ex-Cell-O B&T Model: DC-850 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 14| Status | Sold |
|---|---|
| Manufacturer | Ex-Cell-O B&T |
| Model | DC-850 |
| Size | 850 Ton |
| Inventory Number | DCM-4527 |
Ex-Cell-O B&T - DC-850 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/05 with PanelView 600 HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4527.
Features & Accessories
- Available as a completed automated cell including Advance Products ladle, Dynarad aluminum holding furnace and Metal Mechanics 50 ton trim press.
- Rebuilt and upgraded by Systematic Technologies with full proportional hydraulic circuits and new shot system with Rexroth shot control valves
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Electric Motorized Die Height Adjustment
- C-Frame Shot End with Rexroth Control
- Allen Bradley SLC 5/04 Controls with PanelView 600 HMI
- Trabon Heavy Oil Type Automatic Lubrication System
Item Specifications for DCM-4527
| US | Metric | |
| Tonnage: | 850 tons | 771 tons |
| Tie Bar Diameter: | 7 inches | 177.8 mm |
| Clearance Between Tie Bars: | 36.5 inches | 927 mm |
| Front Platen Size (T x W x H): | 14 x 60 x 69 inches | 355 x 1524 x 1752 mm |
| Die Thickness (minimum - maximum): | 18 - 38 inches | 457 - 965 mm |
| Die Stroke (Adjustable): | 16 - 22 inches | 406 - 558 mm |
| Shot Positions (inserted): | Center, -6, -9 | Center, -152, -228 |
| Main Motor Power: | 75 hp | 55.95 kw |
| Machine Dimensions: | 8.5 x 28.5 x 10 feet | 2.59 x 8.69 x 3.05 meters |
| Machine Weight: | 95,000 pounds | 43,091 Kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, Ex-Cell-O B&T Model DC-850 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Rebuilt and upgraded by Systematic Technologies with full proportional hydraulic circuits and new shot system with Rexroth shot control valves, Twin Cylinder Hydraulic Bumper Plate Ejection, Electric Motorized Die Height Adjustment, C-Frame Shot End with Rexroth Control, Allen Bradley SLC 5/04 Controls with PanelView 600 HMI, Trabon Heavy Oil Type Automatic Lubrication System, Allen Bradley SLC 5/05 with PanelView 600 HMI controls, second Hand, DCM-4527
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
