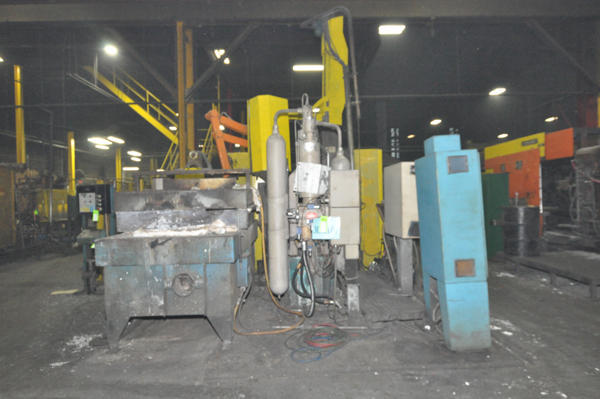

Used Buhler Model: Classic 53 D 535 Metric Tons (590 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 20| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | Classic 53 D |
| Size | 535 Metric Tons (590 US Tons) |
| Inventory Number | DCM-4514 |
Buhler - Classic 53 D 535 Metric Tons (590 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler DataSpeed Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4514.
Features & Accessories
- Available as automated Cell including: Die Cast Machine, Acheson DAG sprayer, Advance Products SL-750 ladle, Rimrock 320 Extractor, Dynarad holding furnace, Forced Air Cooling conveyor and Metal Mechanics trim press
- Buhler Data Speed Control System
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Two (2) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, one (1) on Moving Platen
- Floor Mounted Power Operator and Helper Side Safety Doors
- Hydraulic Motorized Die Height Adjustment System
- Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges
Item Specifications for DCM-4514
| US | Metric | |
| Injection Force, Dynamic - Intensified: | 21.92 - 55.08 tons | 195 - 490 kn (19.88 - 49.97 metric tons) |
| Injection Positions: | Center to -9.84 inches | Center to -250 mm |
| Plunger Diameter (min - max): | 2.36 - 3.93 inches | 60 - 100 mm |
| Plunger Stroke: | 19.68 inches | 500 mm |
| Projected area (min - Maximum): | 46.9 to 130.6 Square Inches | 303 - 843 cm2 |
| Ejector Force/Stroke: | 16.8 tons - 5.7 inches | 150 kN (15.3 metric tons) - 145 mm stroke |
| Tie Bar Diameter: | 4.92 inches | 125 mm |
| Maximum Locking Force: | 590 Tons | 5250 kN (542.99 metric tons) |
| Stationary Platen Size (H x V): | 43.3 x 48.62 inches | 1,100 x 1,235 mm |
| Tie Bar Clearance: | 28.34 x 28.34 inches | 720 x 720 mm |
| Die Height (minimum - maximum): | 12.99 - 31.88 inches | 330 - 810 mm |
| Die Opening Stroke: | 25.19 inches | 640 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – Acheson DAG Lubrimate Linear Automated Die Spray System DCM-4515
- Sold – Dynarad Low Energy Electric Holding Furnace DCM-4517
- Sold – Rimrock Model 320 Multi-Link Extractor DCM-4518
- Sold – Erect-O-Veyor Model: 18 Inch Wide Metal Chain Plate Conveyor Belt with Forced Air Cooling Fans and Tunnel for Die Cast and Foundry Applications DCM-4519
- Sold – Sterlco Model: F6026-DX 48 KW Dual (two) Zone Portable Hot Oil Process Heater Temperature Control Unit DCM-4520
- Sold – Metal Mechanics 35 ton Vertical Hydraulic Trim Press DCM-4521
Description
Used, Buhler Model Classic 53 D 535 Metric Tons (590 US Tons) Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler Data Speed Control System, Twin Cylinder Hydraulic Bumper Plate Ejection, Two (2) Auxiliary Hydraulic Core Circuits, One of Fixed Platen, one (1) on Moving Platen, Floor Mounted Power Operator and Helper Side Safety Doors, Hydraulic Motorized Die Height Adjustment System, Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges, Buhler DataSpeed controls, second Hand, DCM-4514
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
