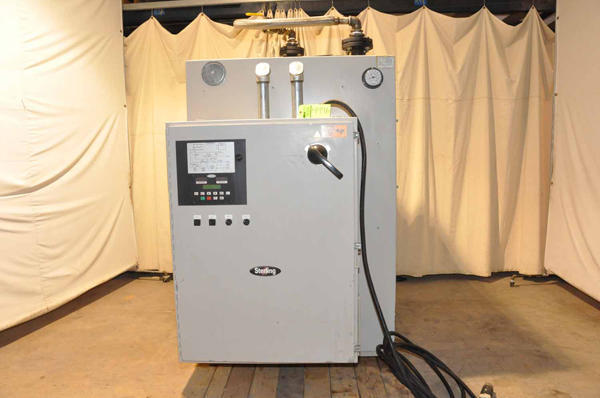

Used Sterlco Model: M2B6017-P 200 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit
1 / 16| Status | Sold |
|---|---|
| Manufacturer | Sterlco |
| Model | M2B6017-P |
| Size | 200 KW |
| Inventory Number | DCM-4446 |
Sterlco - M2B6017-P 200 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit, M2B Controls
Questions? Call (847) 360-9170 and mention DCM-4446.
Features & Accessories
- Originally a 300 KW unit running 3 individual 100 KW heating packs. Prior owner converted the unit to a 200 KW unit (removed one heating element pack) making the unit 200 kw in total. Unit can be run as a 100 KW unit or 200 kw machine.
- Selectable 100 KW or 200 KW Heating Capacity
- Compact Footprint - Minimizes Shop Space Requirements
- Sterlco M2B Dedicated Micro-Processor Control - Easy to Set-up and Use
- Equipped with Viking High Temperature Industrial Positive Displacement Pump
Item Specifications for DCM-4446
| US | Metric | |
| Main Heater Power (100 kW per heater): | 200 kw/100 kw (selectable) | 200 kw/100 kw (selectable) |
| Pump Motor Size: | 10 HP | 7.47 kW |
| Flow Rate: | Gallons Per Minute (GPM) | Liters Per Minute (LPM) |
| Connection size/type: | 2-1/2 inch pipe flange | 2-1/2 inch pipe flange |
| Maximum Operating Temperature: | 550 F | 287.7 C |
| Overall Size (L x W x H): | 75 x 47 x 77 inches (L x W x H) | 75 x 47 x 77 inches (L x W x H) |
| Full Load Amps @ 480/3/60: | 375 amps (as tagged for 300 kw) | 375 amps (as tagged for 300 kw) |
| Approximate Full Load Amps @ 200 KW | 255 amps (as 200 kw unit) | 255 amps (as 200 kw unit) |
Documents
- Sterlco M2B6017 ManualPDF · 1.9 MB
Description
Used, Sterlco Model M2B6017-P 200 KW Single Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Selectable 100 KW or 200 KW Heating Capacity, Compact Footprint - Minimizes Shop Space Requirements, Sterlco M2B Dedicated Micro-Processor Control - Easy to Set-up and Use, Equipped with Viking High Temperature Industrial Positive Displacement Pump, M2B controls, second Hand, DCM-4446
