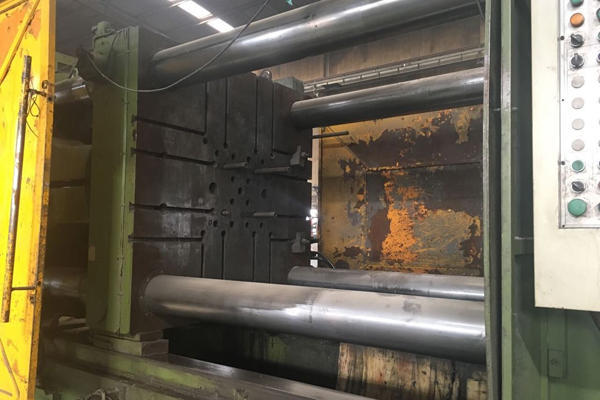

Used Italpresse Model: IP/1650 1650 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerItalpresse
ModelIP/1650
Size1650 Metric Ton
Inventory NumberDCM-4378

Italpresse - IP/1650 1650 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4378.

Features & Accessories

  • Italpresse SC Shot Control using Siemens S-5 PLC Controls
  • Hydraulic Bumper Plate Ejection System
  • Automatic Electric Motorized Die Height Adjustment
  • Inserted Shot Position (allows for multiple shot positions)
  • Central Automatic Lubrications System
  • Operator and Helper Side Safety Doors

Item Specifications for DCM-4378

USMetric
Locking Force:1818 tons1650 tons
Tie Bar Diameter:9.25 inches235 mm
Clearance Between Tie Bars:44.49 x 44.49 inches1,130 x 1,130mm
Die Thickness (minimum - maximum):18.11 - 47.63 inches460 - 1210 mm
Die Stroke (maximum):41.33 inches1050 mm
Moving Platen Size:64.96 x 65.36 inches1649 x 1660 mm
Shot Positions:center, -9.84, -19.68 inchescenter, -249, -499 mm
Shot Stroke:29.13 inches579 mm
Central Ejection Stroke:9.44 inches179 mm
Main Motor Power:480/3/60 - 50 HP480/3/60 - 37 kw
Machine Size:12.2 x 36.2 x 12.10 feet3.72 x 11.03 x 3.69 m
Machine Weight:209,50095,227 kg

Video

Description

Used, Italpresse Model IP/1650 1650 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Italpresse SC Shot Control using Siemens S-5 PLC Controls, Hydraulic Bumper Plate Ejection System, Automatic Electric Motorized Die Height Adjustment, Inserted Shot Position (allows for multiple shot positions), Central Automatic Lubrications System, Operator and Helper Side Safety Doors, controls, second Hand, DCM-4378

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
