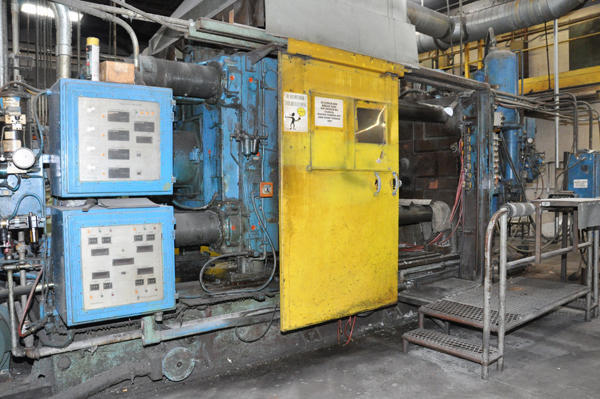

Used Prince Model: 836 CCA 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 29| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 836 CCA |
| Size | 900 U.S. Tons |
| Inventory Number | DCM-4345 |
Prince - 836 CCA 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, GE-Fanuc Series 90-30 Solid State PLC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4345.
Features & Accessories
- Available with MPH Holimesy Aluminum Holding Furnace, Advance Auto-Ladle and B&T Rapid-Press four post hydraulic trim press.
- Equipped with Prince Prince Binary I shot control with Hydraulic Shot Position Adjustment
- GE Fanuc Series 90-30 PLC Controls
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Trabon Automatic Oil Type Lubrication System
- Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment System
- Two (2) auxiliary hydraulic side core circuits, one (1) on moving platen one (1) on stationary platen
Item Specifications for DCM-4345
| US | Metric | |
| Rated Tonnage: | 900 tons | 816.5 tons |
| Tie Bar Diameter: | 7.5 inches | 190.5 mm |
| Clearance Between Tie bars: | 36.5 x 36.5 inches | 927.1 x 927.1 mm |
| Front Platen Size (T x W x H): | 12.75 x 60 x 70 inches | 323.9 x 1524 x 1524 |
| Moving Platen Size (T x W x H): | 11.75 x 60 x 60 inches | 298.5 x 1524 x 1524 |
| Die Thickness (min. - max.): | 20 - 40 inches | 508 - 1016 mm |
| Die Stroke: | 22 inches | 558.8 mm |
| Shot Positions: | Center and -9 inches Below Center | Center and -228 mm inches Below Center |
| Ejection Stroke: | 6 inches | 152.4 |
| Injection Cylinder Bore/Stroke: | 8 x 30 inches | 203.2 mm x 762 mm |
| Motor Size: | 75 HP | 55.16 kw |
| Machine Size (L x W x H): | 28 x 8 x 11 feet | 8.5 x 2.4 x 3.4 meters |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, Prince Model 836 CCA 900 U.S. Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Equipped with Prince Prince Binary I shot control with Hydraulic Shot Position Adjustment, GE Fanuc Series 90-30 PLC Controls, Twin Cylinder Hydraulic Bumper Plate Ejection System, Trabon Automatic Oil Type Lubrication System, Hydraulic Motorized Die Height Adjustment System with Individual Tie Bar Adjustment System, Two (2) auxiliary hydraulic side core circuits, one (1) on moving platen one (1) on stationary platen, GE-Fanuc Series 90-30 Solid State PLC controls, second Hand, DCM-4345
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
