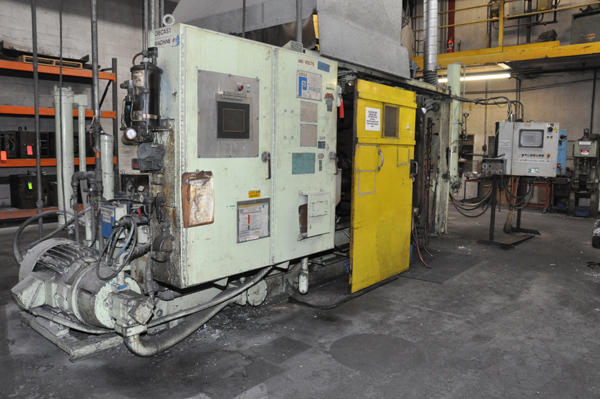

Used Prince Model: 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Prince Model: 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 28
StatusSold
ManufacturerPrince
Model629 CCA
Size650 Ton
Inventory NumberDCM-4344

Prince - 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, GE-Fanuc Series 90-30 Solid State PLC Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-4344.

Features & Accessories

  • Available with MPH Holimesy Aluminum Holding Furnace (rebuilt by Hi-Temp Products), Advance Products SL-1200 auto-ladle, Rimrock 410 die sprayer and B&T Rapid-Press four post hydraulic trim press.
  • C-Frame Shot End with hydraulic shot position adjustment and Olmsted Shot Control Valve
  • GE Fanuc Series 90-30 PLC Controls
  • Center Platen Hydraulic Ejection System; Two (2) auxiliary hydraulic core circuits - one on moving platen, one of fixed platen
  • Hydraulic Motorized Die Height Adjustment System
  • Trabon Automatic Lubrication System
  • Adjustable Shot Stroke and Die Stroke

Item Specifications for DCM-4344

USMetric
Rated Tonnage:650 tons589 tons
Tie Bar Diameter:6.75 inches171 mm
Clearance between Tie Bars:29.25 x 29.25 inches742 x 742 mm
Front Platen Size (T x W x H):10.75 x 51 x 58 inches273 x 1295 x 1473 mm
Moving Platen Size (T x W x H):9.75 x 51 x 53 inches247 x 1295 x 1346 mm
Die Thickness (minimum to maximum):16 - 36 inches406 - 914 mm
Die Stroke:17 inches431 mm
Shot Position Standard:Center and 6 inches belowCenter and 152 mm below
Shot Cylinder Stroke:19 - 24 inches482 - 609 mm
Motor Size:60 HP44.76 Kw
Machine Size (L x W x H):26 x 7.5 x 9 feet7.92 x 2.29 x 2.74 meters
Machine Weight:64,000 pounds29,029 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Prince Model 629 CCA 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with hydraulic shot position adjustment and Olmsted Shot Control Valve, GE Fanuc Series 90-30 PLC Controls, Center Platen Hydraulic Ejection System; Two (2) auxiliary hydraulic core circuits - one on moving platen, one of fixed platen, Hydraulic Motorized Die Height Adjustment System, Trabon Automatic Lubrication System, Adjustable Shot Stroke and Die Stroke, GE-Fanuc Series 90-30 Solid State PLC controls, second Hand, DCM-4344

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
