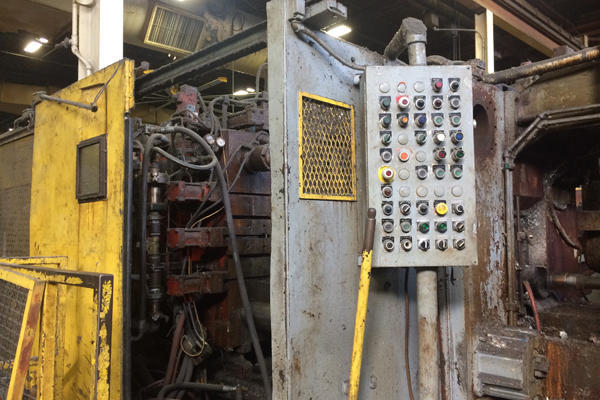

Used Prince Model: 850 850 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerPrince
Model850
Size850 US Tons
Inventory NumberDCM-4257

Prince - 850 850 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4257.

Features & Accessories

  • This machine is for Rebuild only.
  • C-Frame Shot End with Hydraulic Shot Position Adjustment and Towler Proportional Shot Control Valve
  • Top Helper-Side Automatic Tie Bar Puller
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Hydraulic Motorized Die Height Adjustment System
  • Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen
  • Prince Power Die Clamping System

Item Specifications for DCM-4257

USMetric
Rated Tonnage:850 tons772 tons
Tie Bar Diameter:7.5 inches190.5 mm
Clearance Between Tie bars:36.5 x 36.5 inches927.1 x 927.1 mm
Front Platen Size (T x W x H):12.75 x 60 x 70 inches323.9 x 1524 x 1524
Moving Platen Size (T x W x H):11.75 x 60 x 60 inches298.5 x 1524 x 1524
Die Thickness (min. - max.):20 - 40 inches508 - 1016 mm
Die Stroke:22 inches558.8 mm
Injection System:Towler Proportional ValveTowler Proportional Valve
Shot Positions:Inserted, Center to -9 inchesInserted, Center to -9 inches
Approximate Machine Size (L x W x H):28 x 8 x 11 feet8.5 x 2.4 x 3.4 meters
Machine Weight:96,000 pounds43,637kg

Description

Used, Prince Model 850 850 US Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with Hydraulic Shot Position Adjustment and Towler Proportional Shot Control Valve, Top Helper-Side Automatic Tie Bar Puller, Twin Cylinder Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment System, Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Prince Power Die Clamping System, Allen Bradley PLC controls, second Hand, DCM-4257

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
