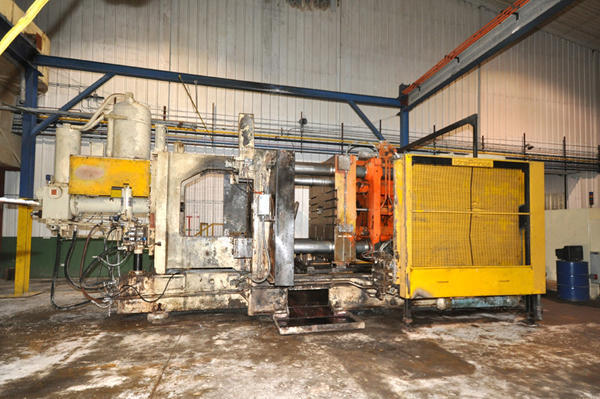

Used Prince Model: 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 28| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1246 CCA |
| Size | 1200 Ton |
| Inventory Number | DCM-4239 |
Prince - 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4239.
Features & Accessories
- Very low hour machine - less than 46,000 hours of total operation
- Prince Binary II-M (magnesium capable) Shot System with Low-Impact Feature and Closed-Coupled 5,000 PSIG Piston Bottle Intensification
- Hydraulic Motorized Die Height Adjustment System Powered by Dual Motors featuring Individual Tie Bar Tonnage Adjustment System with Electronic Strain-Gauges
- Top Helper Side Automatic Tie Bar Puller; Floor Mounted Manual Helper Side Safety Door and Power Operator Side Safety Door
- Air Safety Ratchet Device; Trabon Oil Type Automatic Lubrication System
- Adjustable Die Stroke; Adjustable Shot Stroke
- Twin Cylinder Hydraulic Bumper Plate Ejection System; Two (2) Auxiliary Hydraulic Core Circuits on Moving Platen
Item Specifications for DCM-4239
| US | Metric | |
| Rated Tonnage: | 1200 tons | 1088 tons |
| Tie Bar Diameter: | 9.5 inches | 241 mm |
| Clearance between Tie Bars: | 46.5 x 46.5 inches | 1181 x 1181 mm |
| Front Platen Size (T x W x H): | 17.75 x 75 x 85 inches | 450 x 1778 x 2032 mm |
| Moving Platen Size (T x W x H): | 15.75 x 75 x 75 inches | 400 x 1905 x 1905 mm |
| Die Thickness (minimum to maximum): | 24 - 44 inches | 609 - 1117 mm |
| Die Stroke: | 30 inches | 762 mm |
| Shot Position Standard: | Adjustable - Center to -12 inches below Center | Adjustable - Center to -304 mm below Center |
| Shot Cylinder Stroke: | 28 - 36 inches | 711 - 914 mm |
| Motor Size: | (2) 75 and 15 HP | (2) 55.95 and 11.19 Kw |
| Machine Size (L x W x H): | 36 x 9 x 13 feet | 10.97 x 2.74 x 3.96 meters |
| Machine Weight: | 170,000 pounds | 77,300 kg |
Description
Used, Prince Model 1246 CCA 1200 Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Prince Binary II-M (magnesium capable) Shot System with Low-Impact Feature and Closed-Coupled 5,000 PSIG Piston Bottle Intensification, Hydraulic Motorized Die Height Adjustment System Powered by Dual Motors featuring Individual Tie Bar Tonnage Adjustment System with Electronic Strain-Gauges, Top Helper Side Automatic Tie Bar Puller; Floor Mounted Manual Helper Side Safety Door and Power Operator Side Safety Door, Air Safety Ratchet Device; Trabon Oil Type Automatic Lubrication System, Adjustable Die Stroke; Adjustable Shot Stroke, Twin Cylinder Hydraulic Bumper Plate Ejection System; Two (2) Auxiliary Hydraulic Core Circuits on Moving Platen, Allen Bradley PLC 5/30 controls, second Hand, DCM-4239
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
