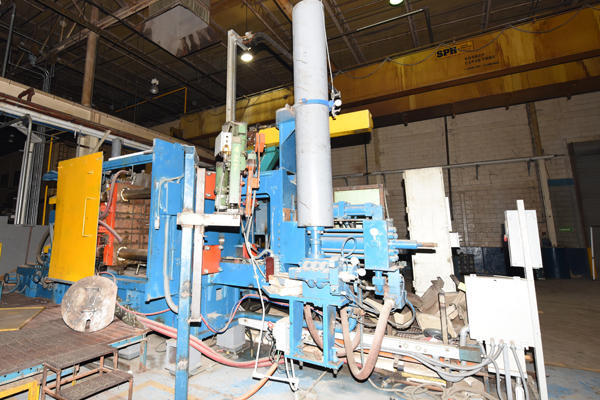

Used HPM Model: II-601-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 8| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | II-601-A |
| Size | 600 Ton |
| Inventory Number | DCM-4196 |
HPM - II-601-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4196.
Features & Accessories
- Available as a die cast machine cell including: Wollin die sprayer, Rimrock Automatic-ladle
- Hydraulic Motorized Die Height Adjustment
- Air Safety Ratchet
- Hydraulic Bumper Plate Ejection System
- Trabon Oil Type Automatic Linkage Lubrication System
- One Core Circuits on Moving Platen
Item Specifications for DCM-4196
| US | Metric | |
| Locking Force: | 600 tons | 545 tons |
| Tie Bar Diameter: | 6 inches | 152 mm |
| Clearance Between Tie Bars (H x V): | 29 x 29 inches | 736 mm x 736 mm |
| Die Thickness (minimum - maximum): | 14 - 36 inches | 355 mm - 914 mm |
| Die Stroke (minimum - maximum): | 12 - 18 inches | 304 mm - 457 mm |
| Moving Platen Size: | 48 x 48 inches | 1219 mm x 1219 mm |
| Shot Positions: | Center, 6 & 9 inches | Center,152 & 228 mm |
| Shot Cylinder Stroke: | 19 - 23 inches | 482 mm - 584 mm |
| Shot Intensification: | Multiplier Cylinder | Multiplier Cylinder |
| Power: | 480/3/60 | 480/3/60 |
| Machine Size: | 7.1 x 26.2 feet | 2.2 x 8 m |
| Machine Weight: | 57,000 pounds | 21,274 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Description
Used, HPM Model II-601-A 600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment, Air Safety Ratchet, Hydraulic Bumper Plate Ejection System, Trabon Oil Type Automatic Linkage Lubrication System, One Core Circuits on Moving Platen, Allen Bradley SLC 5/03 controls, second Hand, DCM-4196
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
