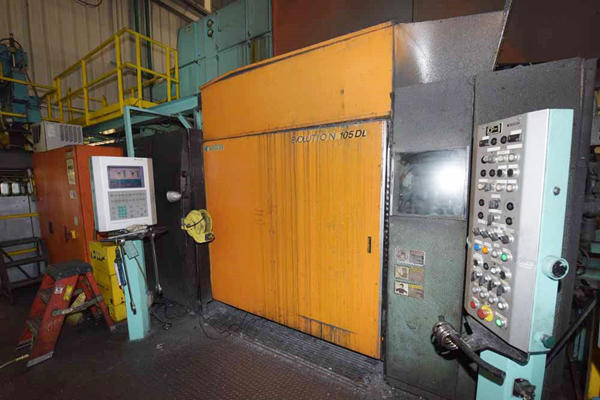

Used Buhler Model: 105 DL 1150 Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 26| Status | Sold |
|---|---|
| Manufacturer | Buhler |
| Model | 105 DL |
| Size | 1150 Tons |
| Inventory Number | DCM-4145 |
Buhler - 105 DL 1150 Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler DataSpeed Controls
View Available Cold Chamber Magnesium
Questions? Call (847) 360-9170 and mention DCM-4145.
Features & Accessories
- Available as a fully automated Cell including: Die Cast Machine, Snair Automatic ladle, Fanuc six axis foundry grade robot for die spray, Fanuc six axis foundry grade robot for extracting, Metal Mechanics 100 Ton Trim Press, FW Schaefer aluminum holding
- Buhler DataSpeed Control System
- Twin Cylinder Hydraulic Bumper Plate Ejection
- Two (2) Auxiliary Hydraulic Core Circuits
- Power Operator and Helper Side Safety Doors
- Hydraulic Motorized Die Height Adjustment System
- Dual Top Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges
Item Specifications for DCM-4145
| US | Metric | |
| Injection Force, Dynamic - Intensified: | 44.73 - 123.19 tons | 40.58 - 111.76 tons |
| Injection Positions: | Center to -13.77 inches | Center to -350 mm |
| Plunger Diameter (min - max) | 3.25 - 5.00 inches | 80.00 - 130.00 mm |
| Plunger Stroke | 35.4 inches | 900 mm |
| Projected area (min - Maximum) | 75 to 197 Square Inches | 48,387 to 127,096.53 Square mm |
| Ejector Force/Stroke: | 44.96 tons - 8.66 inches | 40.78 tons - 220 mm |
| Tie Bar Diameter: | 7.87 inches | 200 mm |
| Maximum Locking Force | 1,187 Ton | 1076.83 tons |
| Platen Size | 65.7 x 65.7 inches | 1,668 x 1,688 mm |
| Tie Bar Clearance | 44 x 44 inches | 1118 x 1118 mm |
| Die Height (minimum - maximum) | 24.0 - 46.1 inches | 610 - 1170 mm |
| Die Opening Stroke | 29.1 inches | 740 mm |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Video
Description
Used, Buhler Model 105 DL 1150 Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler DataSpeed Control System, Twin Cylinder Hydraulic Bumper Plate Ejection, Two (2) Auxiliary Hydraulic Core Circuits, Power Operator and Helper Side Safety Doors, Hydraulic Motorized Die Height Adjustment System, Dual Top Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges, Buhler DataSpeed controls, second Hand, DCM-4145
