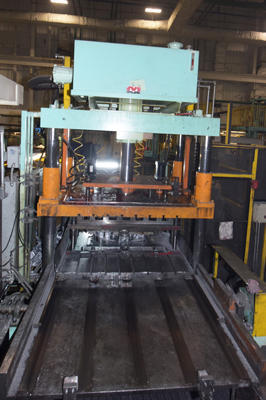

Used Metal Mechanics Model: MM-100-TP 100 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Metal Mechanics |
| Model | MM-100-TP |
| Size | 100 Ton |
| Inventory Number | DCM-4157 |
Metal Mechanics - MM-100-TP 100 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press, Mitsubishi Solid State PLC Controls with Mitsubishi GOT1000 HMI Controls
Questions? Call (847) 360-9170 and mention DCM-4157.
Features & Accessories
- Manufactured new in 2012 by Metal Mechanics
- Fully Automated Tilting Shuttle-bed design for Robot Loading/scrap dumping and external shuttle table for parts removal
- Air Safety Ratchet
- T-Slotted Moving and Bed Platens
- Two (2) auxiliary hydraulic side core circuits
- Fully Guided Hydraulic Bumper Plate Ejection System with Twin Ejector Cylinders
- Full Electrical and Hydraulic Documents including Schematics & PLC Ladder Logic
Item Specifications for DCM-4157
| US | Metric | |
| Model: | MM-TP-100 | MM-TP-100 |
| Pressing Tonnage: | 100 tons | 91 tons |
| Number of Columns: | 4 | 4 |
| Column Diameter: | 5 inches | 127 mm |
| Daylight: | 40 inches | 1016 mm |
| Stroke: | 24 inches | 610 mm |
| Shut Height: | 16 inches | 406 mm |
| Clearance between Tie Bars (Left to Right): | 62 inches | 1575 mm |
| Clearance between Tie Bars (Front to Back): | 34 inches | 863 mm |
| Shuttle Bed Size (Left to Right by Front to Back): | 59 x 49 inches | 1498 x 1244 mm |
| Main Motor Size: | 25 HP | 18.5 KW |
| Approximate Footprint (L/R x F/B) & Weight: | 96 x 84 inches; 30,000 pounds | 2438.4 x 2133.6 mm; 13,640 KG |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Video
Description
Used, Metal Mechanics Model MM-100-TP 100 Ton Four Column (Post) Vertical Hydraulic Die Casting Trim Press For_Sale, Features Include: Fully Automated Tilting Shuttle-bed design for Robot Loading/scrap dumping and external shuttle table for parts removal, Air Safety Ratchet, T-Slotted Moving and Bed Platens, Two (2) auxiliary hydraulic side core circuits, Fully Guided Hydraulic Bumper Plate Ejection System with Twin Ejector Cylinders, Full Electrical and Hydraulic Documents including Schematics & PLC Ladder Logic, Mitsubishi Solid State PLC Controls with Mitsubishi GOT1000 HMI controls, second Hand, DCM-4157
