SOLD

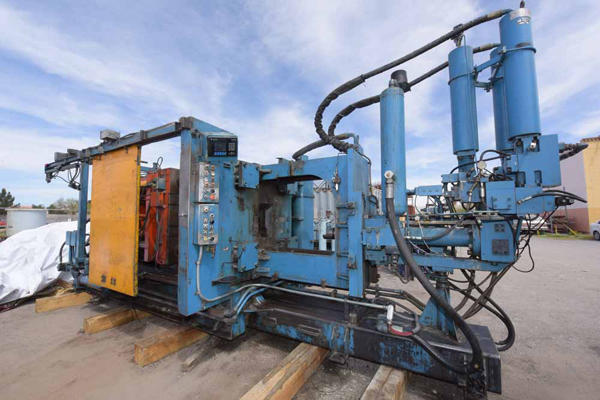

Used Ex-Cell-O B&T Model: DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Ex-Cell-O B&T Model: DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 29
StatusSold
ManufacturerEx-Cell-O B&T
ModelDC-650-A
Size650 Ton
Inventory NumberDCM-4137

Ex-Cell-O B&T - DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-4137.

Features & Accessories

  • Machine was rebuilt and updated by Systematic Technologies with Proportional Hydraulics and Allen Bradley SLC 5/03 Sold State Controls
  • C-Frame Shot End with Shot Position Adjustment, Inserted Shot Positions at Center & -6 inch
  • Fixed Mechanical Bumper Plate Ejection with Secondary Hydraulic Center Platen Ejection
  • Lincoln Automatic Lubrication System
  • Electric Motorized Die Height Adjustment System
  • Two (2) Auxiliary Hydraulic Side Core Circuits - One on Moving Platen, One on Machine Base

Item Specifications for DCM-4137

USMetric
Rated Tonnage:650 tons589 tons
Tie Bar Diameter:6.5 inches165 mm
Clearance between Tie Bars (H x V):32 x 32 inches812 x 812 mm
Front Platen Size (T x H x V):12 x 54 x 63 inches304 x 1,371 x 1,600
Moving Platen Size (T x H x V):12 x 54 x 54304 x 1,371 x 1,371
Die Thickness (minimum to maximum):12 - 32 inches304 - 812
Die Stroke (adjustable):15 - 21 inches381 - 533
Shot Position Standard:Center, -6 inchesCenter, -152 mm
Shot Cylinder Stroke:18.5 - 23.5 inches469 - 596 mm
Motor Size:75 HP56 kw
Machine Size (L x W x H):26 x 8.5 x 11 feet7.92 x 2.44 x 3.05 meters
Machine Weight:70,000 pounds31,820 kg

Description

Used, Ex-Cell-O B&T Model DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Machine was rebuilt and updated by Systematic Technologies with Proportional Hydraulics and Allen Bradley SLC 5/03 Sold State Controls, C-Frame Shot End with Shot Position Adjustment, Inserted Shot Positions at Center & -6 inch, Fixed Mechanical Bumper Plate Ejection with Secondary Hydraulic Center Platen Ejection, Lincoln Automatic Lubrication System, Electric Motorized Die Height Adjustment System, Two (2) Auxiliary Hydraulic Side Core Circuits - One on Moving Platen, One on Machine Base, Allen Bradley SLC 5/03 controls, second Hand, DCM-4137

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
