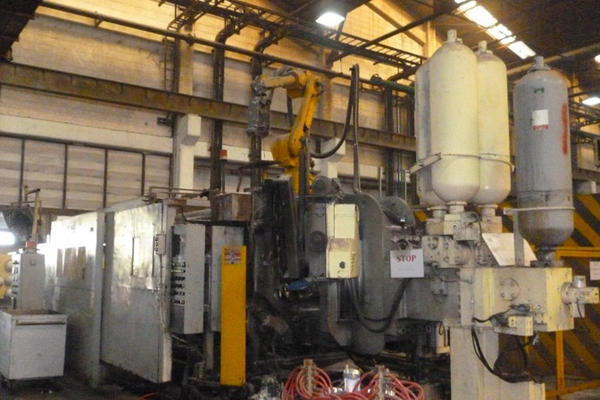

Used Toyo Machinery Model: BD-800V4T 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerToyo Machinery
ModelBD-800V4T
Size800 Metric Ton
Inventory NumberDCM-4132

Toyo Machinery - BD-800V4T 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4132.

Features & Accessories

  • Electric Motorized Die Height
  • Hydraulic Core Circuits
  • Automated with Automatic Ladle
  • Top Operator Side Automatic Tie Bar Puller
  • Hydraulic Bumper Plate Ejection

Item Specifications for DCM-4132

USMetric
Rated Tonnage:881 Tons800 Tons
Platen Dimensions:55.12 x 55.12 inches1400 x 1400 mm
Space Between Tie Bars:36.6 x 36.6 inches850 x 850 mm
Tie Bar Diameter:7.09 inches180 mm
Die Stroke:29.9 inches760 mm
Die Thickness (min. - max.):15.75 - 37.4 inches400 - 950 mm
Injection Force:67.24 - 26.46 tons61 - 24 tons
Shot Position:-9.84 inches-250 mm
Motor Size:60.3 HP45 kW
Machine Weight:44 tons40 Tons

Description

Used, Toyo Machinery Model BD-800V4T 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height, Hydraulic Core Circuits, Automated with Automatic Ladle, Top Operator Side Automatic Tie Bar Puller, Hydraulic Bumper Plate Ejection, controls, second Hand, DCM-4132

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
