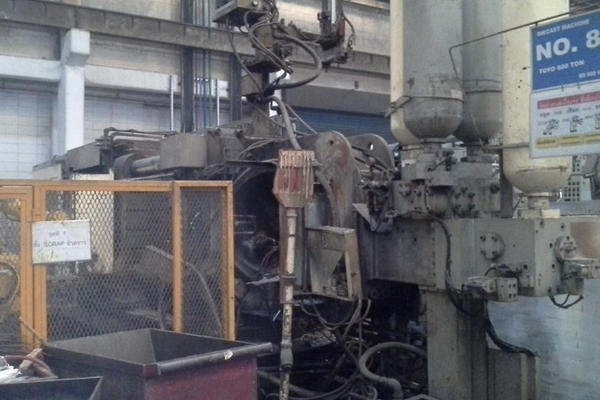

Used Toyo Machinery Model: BD-800T 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 17| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Toyo Machinery |
| Model | BD-800T |
| Size | 800 Metric Ton |
| Inventory Number | DCM-4131 |
Toyo Machinery - BD-800T 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4131.
Features & Accessories
- Electric Motorized Die Height
- Hydraulic Core Circuits
- Automated with Automatic Ladle
- Top Operator Side Automatic Tie Bar Puller
- Hydraulic Bumper Plate Ejection
Item Specifications for DCM-4131
| US | Metric | |
| Rated Tonnage: | 881 Tons | 800 Tons |
| Platen Dimensions: | 55.12 x 55.12 inches | 1400 x 1400 mm |
| Space Between Tie Bars: | 36.6 x 36.6 inches | 850 x 850 mm |
| Tie Bar Diameter: | 7.09 inches | 180 mm |
| Die Stroke: | 29.9 inches | 760 mm |
| Die Thickness (min. - max.): | 15.75 - 37.4 inches | 400 - 950 mm |
| Injection Force: | 67.24 - 26.46 tons | 61 - 24 tons |
| Shot Position: | -9.84 inches | -250 mm |
| Motor Size: | 60.3 HP | 45 kW |
| Machine Weight: | 44 tons | 40 Tons |
Description
Used, Toyo Machinery Model BD-800T 800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Electric Motorized Die Height, Hydraulic Core Circuits, Automated with Automatic Ladle, Top Operator Side Automatic Tie Bar Puller, Hydraulic Bumper Plate Ejection, controls, second Hand, DCM-4131
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
