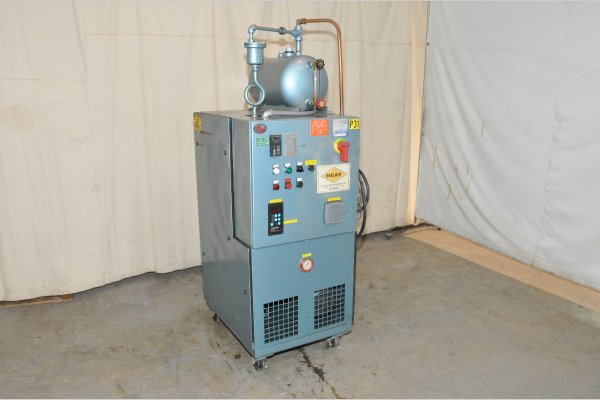

Used HEAT Heat Exchange And Transfer Model: KM550C-12-483 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit

StatusSold
ManufacturerHEAT Heat Exchange And Transfer
ModelKM550C-12-483
Size12 kW
Inventory NumberDCM-4109

HEAT Heat Exchange And Transfer - KM550C-12-483 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit, Watlow 988 PID Digital Temperature Controller Controls

View Available Hot Oil Units

Questions? Call (847) 360-9170 and mention DCM-4109.

Features & Accessories

  • Displays for Process Temperature, Return Temperature and Temperature Difference
  • Equipped with Load Controls Inc. Model PMP-25 Digital Load Monitor for monitoring load on Process Pump Motor
  • Equipped with Optional Motorized Bi-Pass Valve on Process Oil - Allows for Unit to Run Continuously when changing process connection - Faster Heat Ups
  • Alarms for low fluid pressure, pump rotation, over temperature
  • Set points for Process, High Alarm, Low Alarm

Item Specifications for DCM-4109

USMetric
Main Heater Power (Zone #1):12 KW12 KW
Pump Motor Size (Zone #1):3 HP2.23 kW
Maximum Operating Temperature:450 degrees F232 degrees C
Flow Rate (Zone #1):35 gallons per minute113 liters per minute
Connection size/type:1 inch NPT25 mm NPT
Overall Size (L x W x H):43 x 29 x 76 inches110 x 737 x 1,930 mm
Power Requirement @ 19 amp480 Volt / 3 phase / 60 cycle480 Volt / 3 phase / 60 cycle

Documents

Description

Used, HEAT Heat Exchange And Transfer Model KM550C-12-483 12 kW Single Zone Portable Hot Oil Process Heater Temperature Control Unit For_Sale, Features Include: Displays for Process Temperature, Return Temperature and Temperature Difference, Equipped with Load Controls Inc. Model PMP-25 Digital Load Monitor for monitoring load on Process Pump Motor, Equipped with Optional Motorized Bi-Pass Valve on Process Oil - Allows for Unit to Run Continuously when changing process connection - Faster Heat Ups, Alarms for low fluid pressure, pump rotation, over temperature, Set points for Process, High Alarm, Low Alarm, Watlow 988 PID Digital Temperature Controller controls, second Hand, DCM-4109
