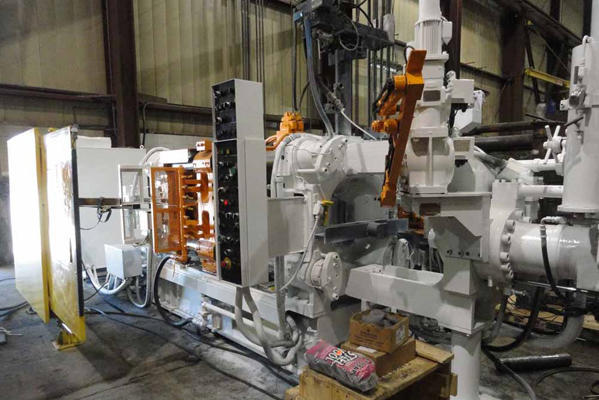

Used Toshiba Model: DC350 CL-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerToshiba
ModelDC350 CL-T
Size350 Metric Ton
Inventory NumberDCM-4072

Toshiba - DC350 CL-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley Compact Logix Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4072.

Features & Accessories

  • With Olmsted servo valve controlled by VisiTrak control system
  • Toshiba Die Sprayer
  • Toshiba Auto Ladle
  • Automatic Top Operator Tie Bar Puller

Item Specifications for DCM-4072

USMetric
Locking Force:385 tons350 tons
Platen Size:36.81 x 36.81 inches935 x 935 mm
Tie Bar Diameter:4.92 inches125 mm
Clearance Between Tie Bars (V x H):25.59 x 25.59 inches650 x 650 mm
Die Thickness (max - min):27.56 - 11.81 inches700 - 300 mm
Die Stroke:16.54 inches420 mm
Injection Stroke:18.9 inches480 mm
Injection Positions:0 and -4.92 inches0 and -125 mm
Ejection Stroke:.79 - 3.54 inches20 - 90 mm
Main Motors:16.4 hp22 kw
Machine Weight:25,794 pounds11,700 kg

Description

Used, Toshiba Model DC350 CL-T 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: With Olmsted servo valve controlled by VisiTrak control system, Toshiba Die Sprayer, Toshiba Auto Ladle, Automatic Top Operator Tie Bar Puller, Allen Bradley Compact Logix controls, second Hand, DCM-4072

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
