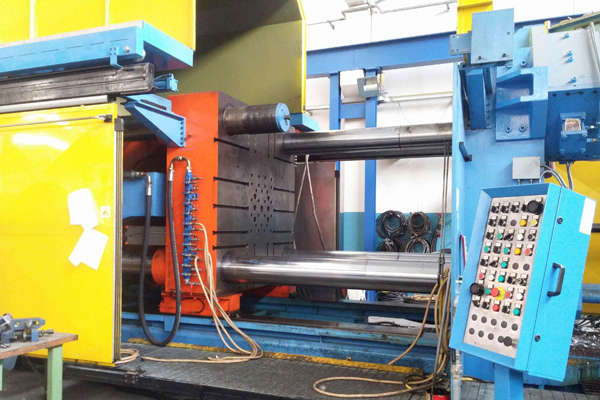

Used Remu SPA Model: DCM-1800 1800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 20| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Remu SPA |
| Model | DCM-1800 |
| Size | 1800 Metric Ton |
| Inventory Number | DCM-4059 |
Remu SPA - DCM-1800 1800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Viper/Siemens S-7 Compatible with 15 inch Touch-Screen HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4059.
Features & Accessories
- Fully Rebuilt and Update in 2012 with CE Certification - Full Documentation Available
- PLC Vipa/Siemens S-7 Compatible
- Automatic Tie Bar Puller of Top Operator Tie Bar, Twin Cylinder Hydraulic Bumper Plate Ejection
- Central Motorized Die Height Adjustment System
- Six (6) Auxiliary Hydraulic Side Core Circuits - Four (4) on Moving Platen, Two (2) on Fixed Platen
- Also including Fergal 2,000 KG (4,400 pound) Aluminum Melting/Holding Furnace, Automatic Ladle, Dual Zone 48 KW Hot Oil Unit, Package Cooling Tower, Die Lube Mixer and ABB Robot for Extracting
Item Specifications for DCM-4059
| US | Metric | |
| Clamping Force: | 1,980 Tons | 1,800 Metric Ton |
| Tie Bar Diameter: | 11.41 inches | 290 mm |
| Clearance between tie bars (H x V): | 48.030 x 48.425 inches | 1,220 x 1230 mm |
| Moving Platen Stroke (maximum): | 41.33 inches | 1050 mm |
| Injection Positions: | Inserted, multi-position | Inserted, multi-position |
| Machine Controls: | Viper/S7 Compatable | Viper/S7 Compatable |
| Machine Dimensions: | 41.7 x 13.2 x 14.5 feet | 12.7 x 4.0 x 4.40 meters |
| Machine Weight | 242,000 pounds | 110,000 kg |
Video
Description
Used, Remu SPA Model DCM-1800 1800 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Fully Rebuilt and Update in 2012 with CE Certification - Full Documentation Available, PLC Vipa/Siemens S-7 Compatible, Automatic Tie Bar Puller of Top Operator Tie Bar, Twin Cylinder Hydraulic Bumper Plate Ejection, Central Motorized Die Height Adjustment System, Six (6) Auxiliary Hydraulic Side Core Circuits - Four (4) on Moving Platen, Two (2) on Fixed Platen, Also including Fergal 2,000 KG (4,400 pound) Aluminum Melting/Holding Furnace, Automatic Ladle, Dual Zone 48 KW Hot Oil Unit, Package Cooling Tower, Die Lube Mixer and ABB Robot for Extracting, Viper/Siemens S-7 Compatible with 15 inch Touch-Screen HMI controls, second Hand, DCM-4059
