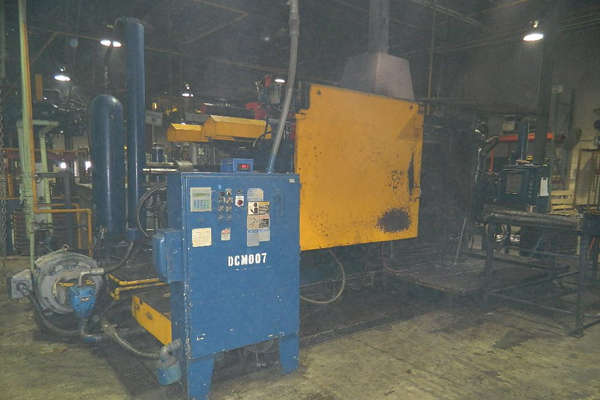

Used HPM Model: D-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | HPM |
| Model | D-800-A |
| Size | 800 Ton |
| Inventory Number | DCM-4047 |
HPM - D-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/02 with AB DTAM HMI Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-4047.
Features & Accessories
- Hydraulic Motorized Die Height Adjustment System
- One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen
- Mechanical Bumper Plate Ejection System
- Automatic Linkage Lubrication System Combination Grease and Oil
- Air Safety Ratchet
- Rebuilt and upgraded in 1994 with HPM C-Frame shot-end and Allen Bradley Controls
Item Specifications for DCM-4047
| US | Metric | |
| Locking Force: | 800 tons | 725 tons |
| Tie Bar Diameter: | 7 inches | 177 mm |
| Clearance Between Tie Bars: | 33 x 33 inches | 863 x 863 mm |
| Die Thickness (minimum - maximum): | 12 - 38 inches | 304 - 965 mm |
| Die Stroke (minimum - maximum): | 18 - 24 inches | 457 - 609 mm |
| Moving Platen Size (H x V x T): | 54 x 54 x 10 inches | 1371 x 1374 x 254 mm |
| Shot Positions (insert in platen): | Center, -3, -6, -9 inches below center | 0, -73, -152, -228 mm below center |
| Shot Intensification: | Piston Bottle Intensification | Piston Bottle Intensification |
| Cylinder Stroke: | 20 - 26 inches | 508 - 660 mm |
| Power: | 60 HP | 44.76 hp |
| Machine Size: | 8.3 x 27.4 feet | 2.53 x 8.35 meters |
| Machine Weight: | 79,000 pounds | 35,833 kg |
Description
Used, HPM Model D-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment System, One (1) Auxiliary Hydraulic Side Core Circuit on Moving Platen, Mechanical Bumper Plate Ejection System, Automatic Linkage Lubrication System Combination Grease and Oil, Air Safety Ratchet, Rebuilt and upgraded in 1994 with HPM C-Frame shot-end and Allen Bradley Controls, Allen Bradley SLC 5/02 with AB DTAM HMI controls, second Hand, DCM-4047
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
