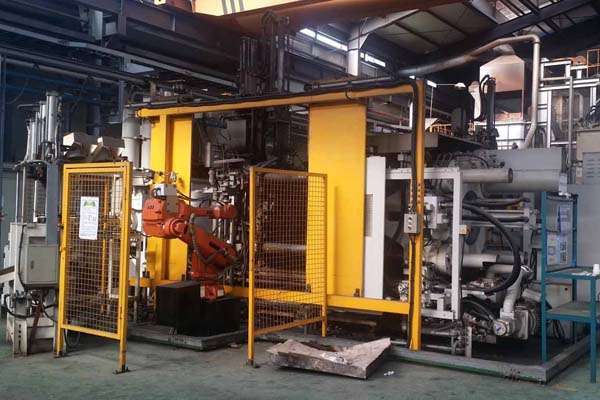

Used Ube Model: UB670iS2 683 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerUbe
ModelUB670iS2
Size683 Metric Ton
Inventory NumberDCM-4032

Ube - UB670iS2 683 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, CastNavi, New Human Machine Interface Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-4032.

Features & Accessories

  • Automatic Ladle
  • Automatic Die Sprayer System
  • ABB IRB 4600 Industrial Robot

Item Specifications for DCM-4032

USMetric
Clamping Force:753 tons683 tons
Platen Size:47.2 x 57.2 inches1200 x 1452mm
Distance Between Tie Bars:33.46 x 33.46 inches850 x 850 mm
Die Stroke:25.9 inches660 mm
Die Thickness (min - max):11.8 - 35.4 inches300 - 900 mm
Ejection Force:34 tons(30 tons)
Ejection Stroke:0 - 4.92 inches0 - 125 mm
Shot Force (max - min):47 - 33 tons43 - 30 tons
Shot Stroke:26.4 inches670 mm
Plunger Tip Diameter (min - max):2.95, 3.34, 3.74 inches75, 85, 95 mm
Shot Positions:center to -6.8 inchescenter to -175 mm

Description

Used, Ube Model UB670iS2 683 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Automatic Ladle, Automatic Die Sprayer System, ABB IRB 4600 Industrial Robot, CastNavi, New Human Machine Interface controls, second Hand, DCM-4032

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
