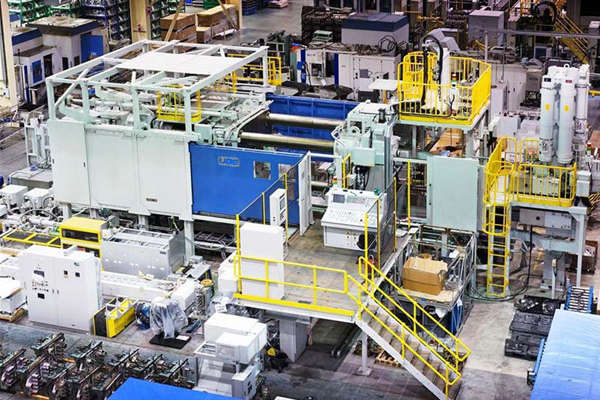

Used Ube Model: UB 3550 GDC 3550 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Ube Model: UB 3550 GDC 3550 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 38
StatusSold
ManufacturerUbe
ModelUB 3550 GDC
Size3550 Metric Ton
Inventory NumberDCM-3865

Ube - UB 3550 GDC 3550 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Ube Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-3865.

Features & Accessories

  • New in 2009 - Never Put into Production - Crated, ready to ship!
  • Dual Fully Automatic Tie Bar Pullers of Top Two Tie Bars
  • Ube Quick Die Change System, Including Quick Die Clamping, Front & Rear Powered Die Carriers
  • CE Certified
  • Electronic Tie Bar Strain Gauge Monitoring and Control System with High/Low Limits
  • Equipped with Ube Low Impact Injection System
  • Twelve Core Circuits, Four on Stationary, Eight on Movable Platen

Item Specifications for DCM-3865

USMetric
Locking Force:3913 tons3550 tons
Tie Bar Diameter:14.76 inches375 mm
Tie Bar Clearance (vertical x horizontal):68.9 x 68.9 inches1750 x 1750 mm
Die Thickness (minimum - maximum):49.21 - 78.74 inches1250 - 2000 mm
Die Stroke (minimum - maximum):59.06 inches1500 mm
Moving Platen Size (vertical x horizontal):110.24 x 107.28 inches2800 x 2725 mm
Shot Position:-13.78 inches-350 mm
Shot Injection Plunger Stroke:62.99 inches inches1600 mm
Injection Force157 - 242 tons143 - 220 tons
Shot Injection Speed:1.96 - 177 inch/sec50 - 4500 mm/sec
Machine Size:67.52 x 35.68 x 20.79 feet20.58 x 10.87 x 63.36 meters
Machine Weight:507,062 pounds230,000 KG

Video

Documents

Description

Used, Ube Model UB 3550 GDC 3550 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Dual Fully Automatic Tie Bar Pullers of Top Two Tie Bars, Ube Quick Die Change System, Including Quick Die Clamping, Front & Rear Powered Die Carriers, CE Certified, Electronic Tie Bar Strain Gauge Monitoring and Control System with High/Low Limits, Equipped with Ube Low Impact Injection System, Twelve Core Circuits, Four on Stationary, Eight on Movable Platen, Ube controls, second Hand, DCM-3865

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
