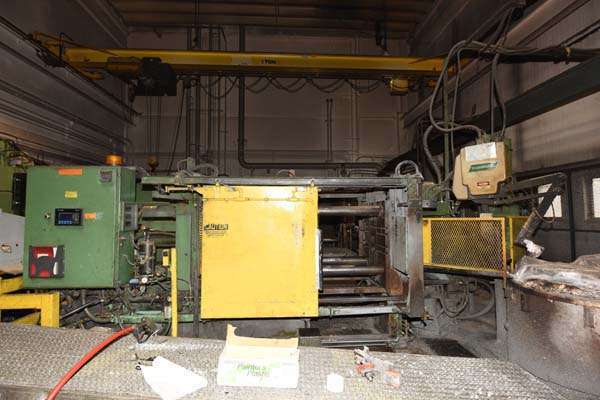

Used HPM Model: II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used HPM Model: II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 21
StatusSold
ManufacturerHPM
ModelII-400-A
Size400 Ton
Inventory NumberDCM-3804

HPM - II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/02 with PanelView 550 HMI Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-3804.

Features & Accessories

  • Available with the following items: Available with the following items: Johnson Natural Gas Fired Silicon Carbide Crucible Aluminum Melting/Holding furnace, Rimrock 305 ladle, Rimrock parts conveyor, Metal Mechanics 25 ton trim press
  • C-Frame Shot End with intensification
  • Hydraulic Motorized Die Height Adjustment, Allen Bradley SLC 5/02 with PanelView 550 HMI
  • Two Auxiliary Core Circuits - One on Moving Platen - One on Stationary Platen
  • Center and Six Inch Below Center Shot Position, Hydraulic Center Platen Ejector Cylinder
  • Trabon Central Lubrication System
  • Available with the following items: Johnson Natural Gas Fired Silicon Carbide Crucible Aluminum Melting/Holding furnace, Rimrock 305 ladle, Rimrock parts conveyor, Metal Mechanics 25 ton trim press

Item Specifications for DCM-3804

USMetric
Clamping (Locking) Force:400 tons363 tons
Tie Bar Diameter:5 inches127 mm
Clearance between Tie Bars (H x V):24 x 24 inches609 x 609 mm
Moving Platen Size (H x V x T):39 x 43.7 x 7.75 inches990 x 1109 x 196 mm
Stationary (Fixed) Platen Size (H x V x T):39 x 42.7 x 8.25 inches990 x 1084 x 209 mm
Die Thickness (minimum to maximum):12 - 30 inches304 - 762 mm
Die Stroke:15 inches381 mm
Shot Cylinder Stroke:18.5 inches470 mm
Rated Dry Cycles Per Hour:375375
Rated Dry Cycles Per Hour:40 hp30 kw
Overall Size:6.7 x 21.4 x 9.8 feet2.04 x 6.52 x 2.99 meters
Weight:34,000 pounds15,454 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, HPM Model II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with intensification, Hydraulic Motorized Die Height Adjustment, Allen Bradley SLC 5/02 with PanelView 550 HMI, Two Auxiliary Core Circuits - One on Moving Platen - One on Stationary Platen, Center and Six Inch Below Center Shot Position, Hydraulic Center Platen Ejector Cylinder, Trabon Central Lubrication System, Available with the following items: Johnson Natural Gas Fired Silicon Carbide Crucible Aluminum Melting/Holding furnace, Rimrock 305 ladle, Rimrock parts conveyor, Metal Mechanics 25 ton trim press, Allen Bradley SLC 5/02 with PanelView 550 HMI controls, second Hand, DCM-3804

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
