SOLD

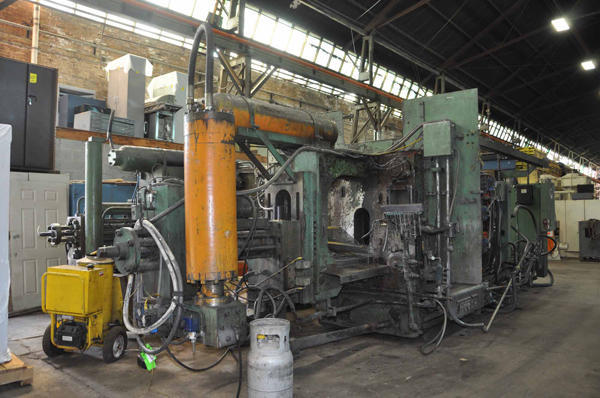

Used HPM Model: II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerHPM
ModelII-800-A
Size800 Ton
Inventory NumberDCM-3803

HPM - II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/05 with PanelView 600 HMI Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3803.

Features & Accessories

  • Hydraulic Motorized Die Height Adjustment System
  • Air Safety Ratchet and Three (3) Auxiliary Hydraulic Side Core Circuits on Moving Platen
  • Hydraulic Bumper Plate Ejection System
  • Automatic Linkage Lubrication System
  • Allen Bradley SLC 5/05 with PanelView 600 HMI

Item Specifications for DCM-3803

USMetric
Locking Force:800 tons725 tons
Tie Bar Diameter:7 inches177 mm
Clearance Between Tie Bars:34 x 34 inches863 x 863 mm
Die Thickness (minimum - maximum):14 - 38 inches355 - 965 mm
Die Stroke (minimum - maximum):14 - 24 inches355 - 609 mm
Moving Platen Size (H x V x T):55 x 55 x 11 inches1397 x 1397 x 279 mm
Shot Positions (insert in platen):Center, -3, -6, -9, -12 inches below center0, -73, -152, -228, -304 mm below center
Shot Intensification:Multiplier CylinderMultiplier Cylinder
Cylinder Stroke:20 - 26 inches508 - 660 mm
Power:60 HP44.76 hp
Machine Size:8.3 x 27.4 feet2.53 x 8.35 meters
Machine Weight:79,000 pounds35,833 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, HPM Model II-800-A 800 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Hydraulic Motorized Die Height Adjustment System, Air Safety Ratchet and Three (3) Auxiliary Hydraulic Side Core Circuits on Moving Platen, Hydraulic Bumper Plate Ejection System, Automatic Linkage Lubrication System, Allen Bradley SLC 5/05 with PanelView 600 HMI, Allen Bradley SLC 5/05 with PanelView 600 HMI controls, second Hand, DCM-3803

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
