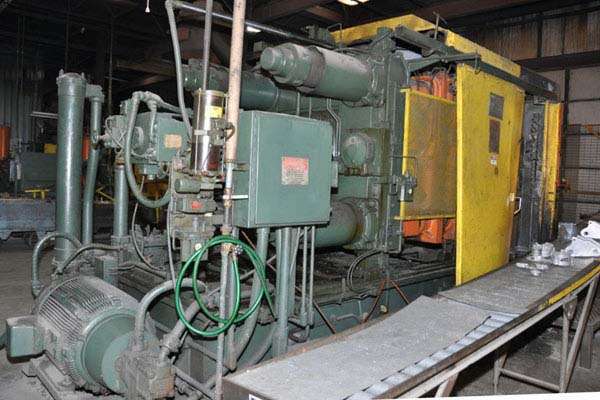

Used Prince Model: 836 CCA 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 8| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 836 CCA |
| Size | 900 Ton |
| Inventory Number | DCM-3759 |
Prince - 836 CCA 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/11 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3759.
Features & Accessories
- C-Frame Shot End with Hydraulic Shot Position Adjustment and Prince Binary I shot control
- Allen Bradley PLC 5/11 Controls
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Hydraulic Motorized Die Height Adjustment System
- Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen
Item Specifications for DCM-3759
| US | Metric | |
| Rated Tonnage: | 900 tons | 816 tons |
| Tie Bar Diameter: | 7.5 inches | 190.50 mm |
| Clearance Between Tie bars: | 36.5 x 36.5 inches | 927.10 x 927.10 mm |
| Front Platen Size (T x W x H): | 12.75 x 60 x 70 inches | 323.85 x 1524 x 1778 mm |
| Moving Platen Size (T x W x H): | 11.75 x 60 x 60 inches | 400.05 x 1524 x 1524 mm |
| Die Thickness (min. - max.): | 20 - 40 inches | 508 - 1016 mm |
| Die Stroke: | 22 inches | 558.8 mm |
| Injection System: | Prince Binary I | Prince Binary I |
| Injection Cylinder Bore/Stroke: | 8 x 30 inches | 203.2 mm x 762 mm |
| Machine Size (L x W x H): | 28 x 8 x 11 feet | 8.5 x 2.4 x 3.4 meters |
| Machine Weight: | 95,000 pounds | 43,182 kg |
Description
Used, Prince Model 836 CCA 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with Hydraulic Shot Position Adjustment and Prince Binary I shot control, Allen Bradley PLC 5/11 Controls, Twin Cylinder Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment System, Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Allen Bradley PLC 5/11 controls, second Hand, DCM-3759
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
