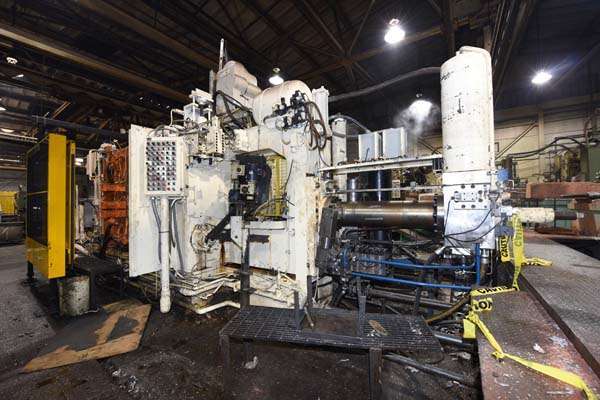

Used Prince Model: 1043 CCA 1000 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 22| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 1043 CCA |
| Size | 1000 Ton |
| Inventory Number | DCM-3757 |
Prince - 1043 CCA 1000 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Prince Prolink, Pro-Filer via Allen Bradley CompactLogix Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3757.
Features & Accessories
- Extensive upgrades and repairs by Prince in 2014/2015 including new Binary II shot system with low impact, new controls featuring prince pro-link, pro-filer and new exchange linkage.
- Upgraded in 2014 by Prince including Binary II Shot System with Prince Low Impact, Surge Accumulator, new CompactLogix Controls Prince Pro-Link, Pro-Filer with new Electrical Control Cabinets
- Rebuilt Exchange linkage installed by Prince including Linkage, Housing Bearing and Bumper Plate Bushings installed in 2015
- Top Operator Side Automatic Tie Bar Pulling System, Prince Individual Tie Bar Adjustment System
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Power Die Clamping
- Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen
Item Specifications for DCM-3757
| US | Metric | |
| Rated Tonnage | 1000 tons | 907 tons |
| Tie Bar Diameter | 8.5 inches | 215.9 mm |
| Clearance Between Tie bars | 43.5 x 43.5 inches | 1104.9 x 1104.9 mm |
| Front Platen Size (T x W x H) | 16.50 x 68 x 78 inches | 419 x 1727 x 1981 mm |
| Moving Platen Size (T x W x H) | 15 x 68 x 68 inches | 381 x 1727.2 x 1727.2 mm |
| Die Thickness (min. - max.) | 20 - 44 inches | 508 mm - 1117.6 mm |
| Die Stroke | 27 inches | 686 mm |
| Shot Positions | Center and 9 inches below | Center and 228.6 mm below |
| Shot Cylinder Bore & Stroke (adjustable): | 8 inches x 36 - 30 inches | 203 mm x 914 - 762 mm |
| Ejection Stroke/Force | 4 inches / 21.5 tons | 101.6 mm / 19.5 tons |
| Machine Size (L x W x H) | 35.6 x 8.6 x 12.6 feet | 10.82 x 2.59 x 3.81 m |
| Machine Weight | 140,000 pounds | 63,636 kg |
Description
Used, Prince Model 1043 CCA 1000 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Upgraded in 2014 by Prince including Binary II Shot System with Prince Low Impact, Surge Accumulator, new CompactLogix Controls Prince Pro-Link, Pro-Filer with new Electrical Control Cabinets, Rebuilt Exchange linkage installed by Prince including Linkage, Housing Bearing and Bumper Plate Bushings installed in 2015, Top Operator Side Automatic Tie Bar Pulling System, Prince Individual Tie Bar Adjustment System, Twin Cylinder Hydraulic Bumper Plate Ejection System, Power Die Clamping, Two (2) auxiliary hydraulic side core circuits one (1) on moving platen one (1) on stationary platen, Prince Prolink, Pro-Filer via Allen Bradley CompactLogix controls, second Hand, DCM-3757
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
