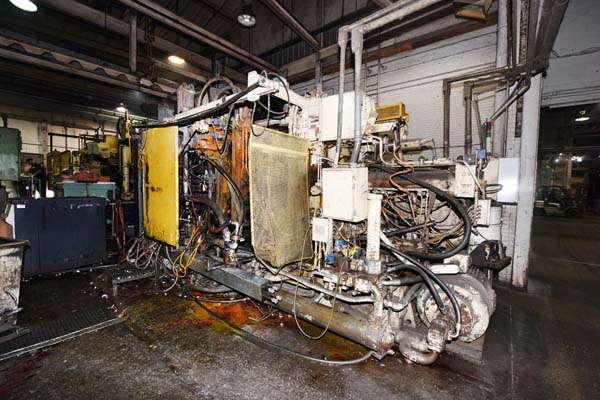

Used Prince Model: 836 CCA 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerPrince
Model836 CCA
Size900 Ton
Inventory NumberDCM-3756

Prince - 836 CCA 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Solid State Programmable Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3756.

Features & Accessories

  • Prince Dual Automatic Tie Bar Pulling System On Top Two Tie Bars
  • Prince Individual Die Bar Tonnage Adjustment System with Electronic Tie Bar Strain Gauging and Monitoring System
  • Hydraulic Powered Motorized Die Height Adjustment System
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Prince Binary II Shot Control System
  • Power Die Clamping

Item Specifications for DCM-3756

USMetric
Rated Tonnage:900 tons818 metric tons
Tie Bar Diameter:7.5 inches190.50 mm
Clearance Between Tie bars:36.5 x 36.5 inches927.10 x 927.10 mm
Front Platen Size (T x W x H):12.75 x 60 x 70 inches323.85 x 1524 x 1778 mm
Moving Platen Size (T x W x H):11.75 x 60 x 60 inches400.05 x 1524 x 1524 mm
Die Thickness (min. - max.):17 inches - 37 inches431.8 mm - 939.80 mm
Die Stroke:22 inches558.8 mm
Injection System:Prince Binary IIPrince Binary II
Injection Cylinder Bore/Stroke:7 inches x 27 inches177.80 x 685.80
Maximum Rated Fast Shot Speed:375 i.p.s.9.925 m/second
Machine Size (L x W x H):32 x 10 x 11 feet9.750 x 3.050 x 3.352 m
Machine Weight:95,000 pounds43,182 kg

Description

Used, Prince Model 836 CCA 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Prince Dual Automatic Tie Bar Pulling System On Top Two Tie Bars, Prince Individual Die Bar Tonnage Adjustment System with Electronic Tie Bar Strain Gauging and Monitoring System, Hydraulic Powered Motorized Die Height Adjustment System, Twin Cylinder Hydraulic Bumper Plate Ejection System, Prince Binary II Shot Control System, Power Die Clamping, Allen Bradley PLC 5/30 Solid State Programmable controls, second Hand, DCM-3756

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
