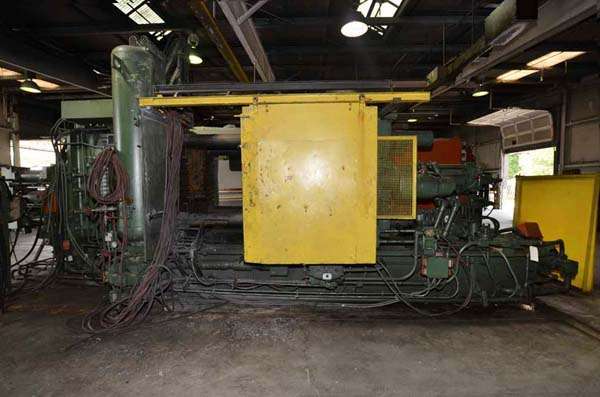

Used Ex-Cell-O B&T Model: DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerEx-Cell-O B&T
ModelDC-650-A
Size650 Ton
Inventory NumberDCM-3726

Ex-Cell-O B&T - DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Mitsubishi MELSEC FX Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3726.

Features & Accessories

  • C-Frame Shot End with Hydraulic Shot Position Adjustment
  • Inserted Shot Positions - Center, -6 & -9 inch
  • Mitsubishi PLC Controls installed during rebuild
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Electric Motorized Die Height Adjustment System
  • Two (2) auxiliary hydraulic side core circuits on moving platen

Item Specifications for DCM-3726

USMetric
Rated Tonnage:650 tons589 tons
Tie Bar Diameter:6.5 inches165 mm
Clearance between Tie Bars (H x V):32 x 32 inches812 x 812 mm
Front Platen Size (T x H x V):12 x 54 x 63 inches304 x 1,371 x 1,600
Moving Platen Size (T x H x V):12 x 54 x 54304 x 1,371 x 1,371
Die Thickness (minimum to maximum):12 - 32 inches304 - 812
Die Stroke (adjustable):15 - 21 inches381 - 533
Shot Position Standard:Center, -6 & -9 inchesCenter, -152, 228 mm
Shot Cylinder Stroke:18.5 - 23.5 inches469 - 596 mm
Motor Size:75 HP56 kw
Machine Size (L x W x H):26 x 8 x 10 feet7.92 x 2.44 x 3.05 meters
Machine Weight:68,000 pounds31,820 kg

Description

Used, Ex-Cell-O B&T Model DC-650-A 650 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with Hydraulic Shot Position Adjustment, Inserted Shot Positions - Center, -6 & -9 inch, Mitsubishi PLC Controls installed during rebuild, Twin Cylinder Hydraulic Bumper Plate Ejection System, Electric Motorized Die Height Adjustment System, Two (2) auxiliary hydraulic side core circuits on moving platen, Mitsubishi MELSEC FX controls, second Hand, DCM-3726
