SOLD

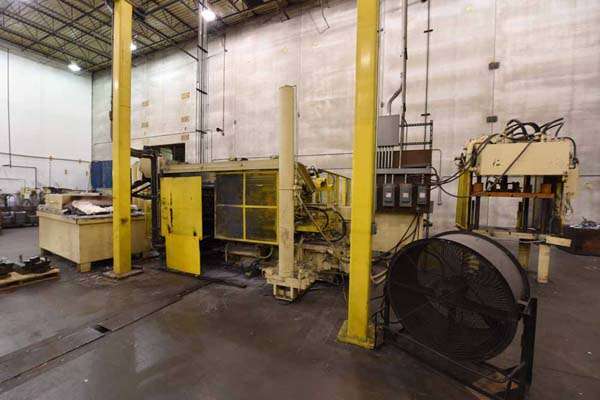

Used HPM Model: II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used HPM Model: II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 24
StatusSold
ManufacturerHPM
ModelII-400-A
Size400 Ton
Inventory NumberDCM-3722

HPM - II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Allen Bradley SLC 5/01 Solid State Controls Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDFPlay Video

Questions? Call (847) 360-9170 and mention DCM-3722.

Features & Accessories

  • C-Frame Shot End with Independent Close Coupled Fast Shot Piston Accumulator Bottle and Multiplier Cylinder Intensification
  • Allen Bradley SLC 5/03 Programmable Controls
  • Top Helper Side Automatic Tie Bar Pulling System
  • Hydraulic Center Platen Ejection System
  • Trabon Automatic Lubrication System
  • Available as a fully automated cell with ladle, sprayer/extractor, cooling conveyor, trim press and furnace

Item Specifications for DCM-3722

USMetric
Clamping (Locking) Force:400 tons363 tons
Tie Bar Diameter:5 inches127 mm
Clearance between Tie Bars (H x V):24 x 24 inches609 x 609 mm
Moving Platen Size (H x V x T)39 x 43.7 x 7.75990 x 1109 x 196 mm
Stationary (Fixed) Platen Size (H x V x T):39 x 42.7 x 8.25 inches990 x 1084 x 209 mm
Die Thickness (minimum to maximum):12 - 30 inches304 - 762 mm
Die Stroke:15 inches381 mm
Shot Cylinder Stroke:14.5 - 18.5 inches368 - 470 mm
Rated Dry Cycles Per Hour:375375
Main Motor:40 hp30 kw
Overall Size:6.7 x 21.4 x 9.8 feet2042 x 6522 x 2987 mm
Weight:34,000 pounds15,454 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Video

Documents

Description

Used, HPM Model II-400-A 400 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: C-Frame Shot End with Independent Close Coupled Fast Shot Piston Accumulator Bottle and Multiplier Cylinder Intensification, Allen Bradley SLC 5/03 Programmable Controls, Top Helper Side Automatic Tie Bar Pulling System, Hydraulic Center Platen Ejection System, Trabon Automatic Lubrication System, Available as a fully automated cell with ladle, sprayer/extractor, cooling conveyor, trim press and furnace, Allen Bradley SLC 5/01 Solid State Controls controls, second Hand, DCM-3722

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
