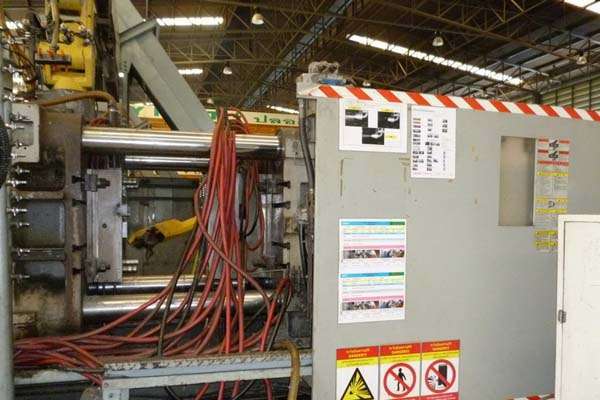

Used Toyo Machinery Model: BD-350V5 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerToyo Machinery
ModelBD-350V5
Size350 Metric Ton
Inventory NumberDCM-3707

Toyo Machinery - BD-350V5 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3707.

Features & Accessories

  • Equipped with Automatic Ladle

Item Specifications for DCM-3707

USMetric
Locking Force:393 tons350 tons
Clearance Between Tie Bars (H x W):25.67 x 25.67 inches652 x 652 mm
Die Stroke (max - min):16.5 - 11.8 inches420 - 300 mm
Die Height (max - min):27.5 - 11.8 inches700 - 300 mm
Hydraulic Ejection Force:21.6 tons193 kN
Injection System:Toyo Multi InjectionToyo Multi Injection
Injection Force:29.6 - 37.6 tons264 - 335 kN
Injection Speed (low speed):1.18 - 39.37 in/sec0.03 - 1.0 m/s
Injection Speed (High speed):39.37 - 354.33 in/sec1.0 - 9.0 m/s
Shot Positions:-5.91 inches-150 mm
Machine Weight:33,000 pounds15,000 kg
Machine Size:20.9 x 6.6 x 9.2 feet6.4 x 2 x 2.8 meters

Description

Used, Toyo Machinery Model BD-350V5 350 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include:, controls, second Hand, DCM-3707

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
