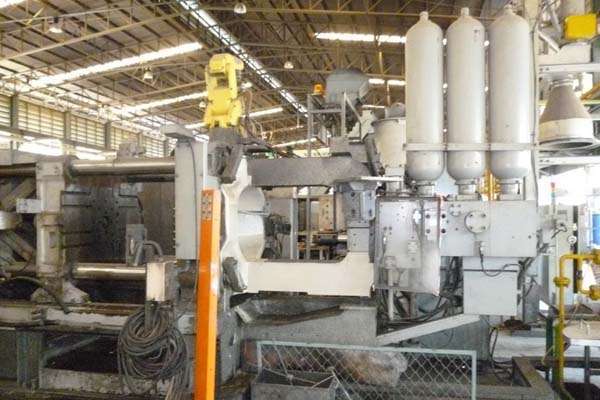

Used Toyo Machinery Model: BD-350V5 350 Metric Ton
1 / 22| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Toyo Machinery |
| Model | BD-350V5 |
| Size | 350 Metric Ton |
| Inventory Number | DCM-3706 |
Toyo Machinery - BD-350V5 350 Metric Ton , Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3706.
Features & Accessories
- Equipped with Automatic Ladle
Item Specifications for DCM-3706
| US | Metric | |
| Locking Force: | 393 tons | 350 tons |
| Clearance Between Tie Bars (H x W): | 25.67 x 25.67 inches | 652 x 652 mm |
| Die Stroke (max - min): | 16.5 - 11.8 inches | 420 - 300 mm |
| Die Height (max - min): | 27.5 - 11.8 inches | 700 - 300 mm |
| Hydraulic Ejection Force: | 21.6 tons | 193 kN |
| Injection System: | Toyo Multi Injection | Toyo Multi Injection |
| Injection Force: | 29.6 - 37.6 tons | 264 - 335 kN |
| Injection Speed (low speed): | 1.18 - 39.37 in/sec | 0.03 - 1.0 m/s |
| Injection Speed (High speed): | 39.37 - 354.33 in/sec | 1.0 - 9.0 m/s |
| Shot Positions: | -5.91 inches | -150 mm |
| Machine Weight: | 33,000 pounds | 15,000 kg |
| Machine Size: | 20.9 x 6.6 x 9.2 feet | 6.4 x 2 x 2.8 meters |
Description
Used, Toyo Machinery Model BD-350V5 350 Metric Ton For_Sale, Features Include:, controls, second Hand, DCM-3706
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
