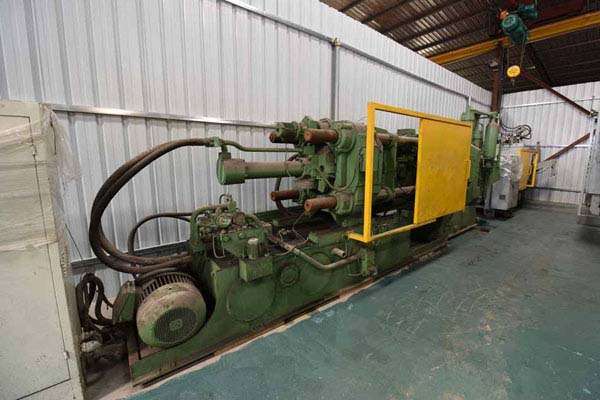

Used Idra Model: OL 400 400 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerIdra
ModelOL 400
Size400 Metric Ton
Inventory NumberDCM-3617

Idra - OL 400 400 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Siemens Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3617.

Item Specifications for DCM-3617

USMetric
Locking Force:400 Tons3450 kN
Tie Bar Diameter:4.92 inches125 mm
Clearance Between Tie Bars:22.4 x 22.4 inches595 x 595 mm
Die Thickness (Minimum to Maximum):7.9 - 25.6 inches250 - 700 mm
Moving Platen Stroke:22.4 inches600 mm
Platen Dimensions:34.6 x 34.6 inches975 x 975 mm
Maximum Injection Force:4.61 Tons46 kN
Ejection Force:2.2 Tons22 kN
Motor Rating:29.5 HP22 KW
Machine Size:21.1 x 6.8 x 8.9 feet6.4 x 2 x 2.7 m

Description

Used, Idra Model OL 400 400 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include:, Siemens controls, second Hand, DCM-3617

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
