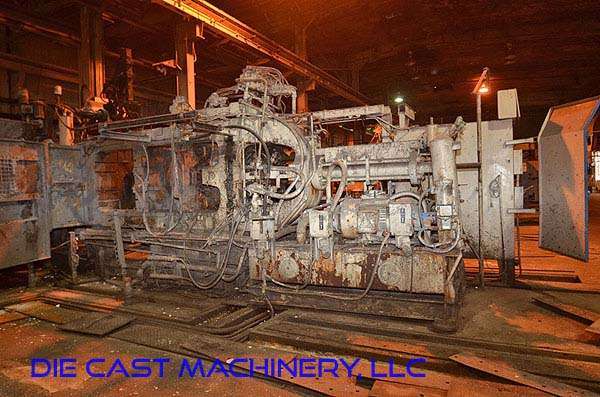

Used Lester Model: HP-900X-SF 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 6| Status | Sold |
|---|---|
| Manufacturer | Lester |
| Model | HP-900X-SF |
| Size | 900 Ton |
| Inventory Number | DCM-3366 |
Lester - HP-900X-SF 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Modicon Solid State PLC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3366.
Features & Accessories
- Olmsted Prefill Shot Control System
- T-Slotted Moving & Stationary Platens
- Six Auxiliary Hydraulic Side Core Circuits
- Lincoln Pressurized Oil Type Central Lubrication System
- Hydraulic Center Platen Ejection System
- Air Safety Ratchet
Item Specifications for DCM-3366
| US | Metric | |
| Maximum Die Locking Pressure: | 900 tons | 816 tons |
| Die Height Adjustment (with die spacer rings): | 36 - 18 inches | 914 - 457 mm |
| Die Stroke (adjustable) | 12 - 21 inches | 304 - 533 mm |
| Clearance between beams (Hor x Vert): | 35 inches by 36 inches | 889 by 914 mm |
| Moving Platen Size (Hor x Vert): | 50 inches by 50 inches | 1270 mm by 1270 mm |
| Ejector Cylinder Stroke (adjustable): | 0 - 8 inches | 0 - 203 mm |
| Ejector Cylinder Force: | 20 tons | 18 tons |
| Shot Positions (inserted, adjustable): | Center to -10 inches | center to 254 mm |
| Machine Controls: | Modicon PLC | Modicon PLC |
| Main Motor Size: | 40 HP | 30 kw |
| Approximate Machine Weight: | 75,000 pounds | 34,100 KG |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
- Sold – RDC 4000 pounds Low Energy High Efficiency Natural Gas Heated Aluminum Holding Furnace DCM-3367
- Sold – Rimrock 305-70 Inch Multi-Link Automatic Ladle for Aluminum and Brass Die Casting and Foundry Operations DCM-3368
- Sold – Advance Product Gemini 155 40 Inch Multi-Link Automatic Reciprocating Die Lubrication Sprayer DCM-3369
- Sold – ABB IRB 6400 120 Kg Six Axis Foundry Rated Industrial Robot with Extractor Package/Gripper DCM-3370
Description
Used, Lester Model HP-900X-SF 900 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Olmsted Prefill Shot Control System, T-Slotted Moving & Stationary Platens, Six Auxiliary Hydraulic Side Core Circuits, Lincoln Pressurized Oil Type Central Lubrication System, Hydraulic Center Platen Ejection System, Air Safety Ratchet, Modicon Solid State PLC controls, second Hand, DCM-3366
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
