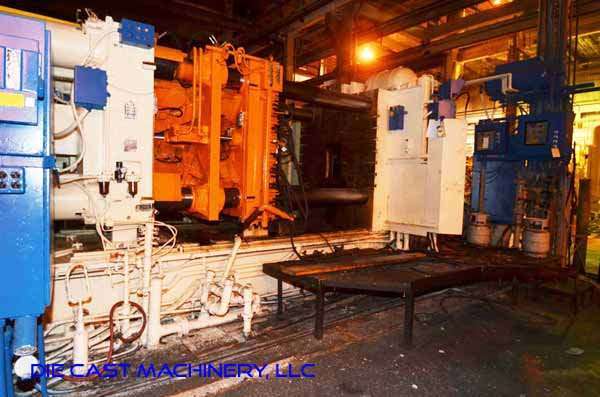

Used Prince Model: 940 CCA 950 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 18| Status | Sold |
|---|---|
| Manufacturer | Prince |
| Model | 940 CCA |
| Size | 950 Tons |
| Inventory Number | DCM-3347 |
Prince - 940 CCA 950 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Modicon Solid State PLC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3347.
Features & Accessories
- Prince Automatic Tie Bar Pulling System - Top Helper Side Tie Bar
- Prince Individual Die Bar Tonnage Adjustment System
- 4 Core Circuits on Moving Platen - 1 on Fixed Platen
- Prince Binary Shot Control System with close coupled hydraulic Accumulators
- Twin Cylinder Hydraulic Bumper Plate Ejection System
- Insert For Shot Position Center to -12 inches
Item Specifications for DCM-3347
| US | Metric | |
| Rated Tonage | 950 tons | 861 tons |
| Tie Bar Diameter | 8 inches | 203.2 mm |
| Clearance Between Tie bars | 40 inches | 1016 mm |
| Front Platen Size (T x W x H) | 14.75 x 64 x 74 inches | 374.7 x 1625.6 x 1879.6 mm |
| Moving Platen Size (T x W x H) | 13.75 x 64 x 64 inches | 349.3 x 1625.6 x 1625.6 mm |
| Die Thickness (min. - max.) | 22 - 42 inches | 558.8 - 1066.8 mm |
| Die Stroke | 24.5 inches | 622.3 mm |
| Ejection Stroke | 6 inches | 152.4 mm |
| Ejection Force | 21.5 tons | 19.5 tons |
| Motor Size | 100 hp | 74.6 kw |
| Machine Size (L x W x H) | 29.9 x 8.6 x 11 feet | 9.1 x 2.6 x 3.4 m |
| Machine Weight | 115,000 pounds | 42,922 kg |
Optional Equipment Available with Machine at Additional Cost (Click on item to view)
Video
Description
Used, Prince Model 940 CCA 950 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Prince Automatic Tie Bar Pulling System - Top Helper Side Tie Bar, Prince Individual Die Bar Tonnage Adjustment System, 4 Core Circuits on Moving Platen - 1 on Fixed Platen, Prince Binary Shot Control System with close coupled hydraulic Accumulators, Twin Cylinder Hydraulic Bumper Plate Ejection System, Insert For Shot Position Center to -12 inches, Modicon Solid State PLC controls, second Hand, DCM-3347
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
