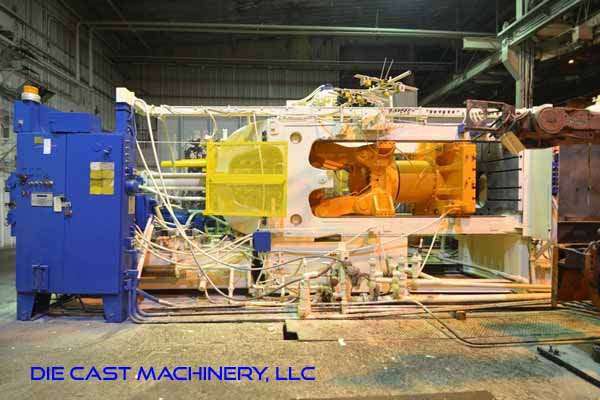

Used Lester Model: HP-1200X-SF 1200 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusSold
ManufacturerLester
ModelHP-1200X-SF
Size1200 Tons
Inventory NumberDCM-3340

Lester - HP-1200X-SF 1200 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Modicon Solid State PLC Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3340.

Features & Accessories

  • Olmsted Prefill Shot Control System
  • T-Slotted Moving & Stationary Platens
  • Six Auxiliary Hydraulic Side Core Circuits
  • Lincoln Pressurized Oil Type Central Lubrication System
  • Hydraulic Center Platen Ejection System
  • Air Safety Ratchet

Item Specifications for DCM-3340

USMetric
Maximum Die Locking Pressure:1200 tons1454 tons
Die Height Adjustment (with die spacer rings):48 - 18 inches1219 - 457 mm
Die Stroke (adjustable)10.250 - 30 inches260 - 762 mm
Clearance between beams (Hor x Vert):42 x 42 inches1066 x 1066 mm
Moving Platen Size (Hor x Vert):65 x 65 inches1651 x 1651 mm
Ejector Cylinder Stroke (adjustable):0 - 8 inches0 - 203 mm
Ejector Cylinder Force:30 tons27 tons
Shot Positions (inserted, adjustable):Center to -12 inchescenter to -304 mm
Machine Controls:Modicon PLCModicon PLC
Main Motor Size:75 HP55 KW
Approximate Machine Weight:112,000 pounds50,900 KG

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Video

Description

Used, Lester Model HP-1200X-SF 1200 Tons Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Olmsted Prefill Shot Control System, T-Slotted Moving & Stationary Platens, Six Auxiliary Hydraulic Side Core Circuits, Lincoln Pressurized Oil Type Central Lubrication System, Hydraulic Center Platen Ejection System, Air Safety Ratchet, Modicon Solid State PLC controls, second Hand, DCM-3340

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
