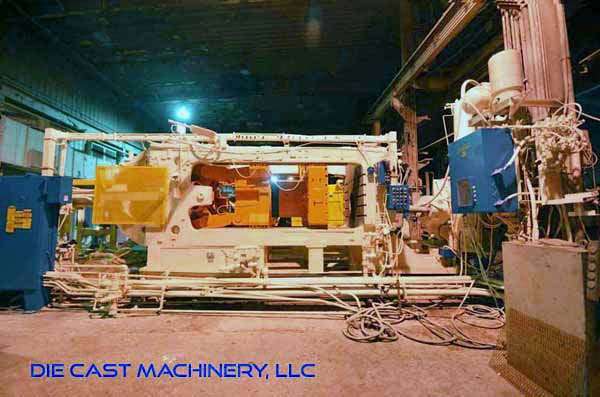

Used Lester Model: HP-1600X-SF 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine
1 / 22| Status | Sold |
|---|---|
| Manufacturer | Lester |
| Model | HP-1600X-SF |
| Size | 1600 Ton |
| Inventory Number | DCM-3329 |
Lester - HP-1600X-SF 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Modicon Solid State PLC Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3329.
Features & Accessories
- Olmsted Prefill Shot Control System
- T-Slotted Moving & Stationary Platens
- Six Auxiliary Hydraulic Side Core Circuits
- Lincoln Pressurized Oil Type Central Lubrication System
- Hydraulic Center Platen Ejection System
- Air Safety Ratchet
Item Specifications for DCM-3329
| US | Metric | |
| Maximum Die Locking Pressure: | 1600 tons | 1454 tons |
| Die Height Adjustment (with die spacer rings): | 65 - 29 inches | 1651 -736 mm |
| Die Stroke (adjustable) | 20 - 36 inches | 508 - 914 mm |
| Clearance between beams (Hor x Vert): | 52 x 55 inches | 1320 x 1397 mm |
| Moving Platen Size (Hor x Vert): | 89 x 89 inches | 2260 mm by 2260 mm |
| Ejector Cylinder Stroke (adjustable): | 0 - 12 inches | 0 - 304 mm |
| Ejector Cylinder Force: | 50 tons | 45 tons |
| Shot Positions (inserted, adjustable): | Center to -15 inches | center to 381 mm |
| Machine Controls: | Modicon PLC | Modicon PLC |
| Main Motor Size: | 100 HP | 75 KW |
| Approximate Machine Weight: | 225,000 pounds | 102,272 KG |
Video
Description
Used, Lester Model HP-1600X-SF 1600 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Olmsted Prefill Shot Control System, T-Slotted Moving & Stationary Platens, Six Auxiliary Hydraulic Side Core Circuits, Lincoln Pressurized Oil Type Central Lubrication System, Hydraulic Center Platen Ejection System, Air Safety Ratchet, Modicon Solid State PLC controls, second Hand, DCM-3329
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
