SOLD

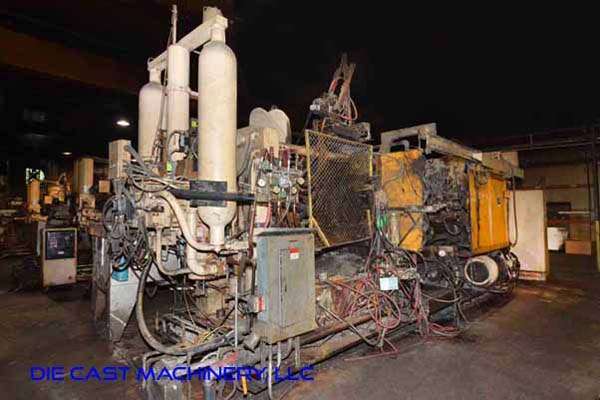

Used Idra Model: OL/700 I PRP 700 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

StatusSold
ManufacturerIdra
ModelOL/700 I PRP
Size700 Metric Ton
Inventory NumberDCM-3306

Idra - OL/700 I PRP 700 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley PLC 5/30 Solid State Programmable Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3306.

Features & Accessories

  • Available As a Complete Cell Including: Gas Fired Aluminum Holding Furnace, Advance Products SR 1150 Reciprocating Die Sprayer, Rimrock 405 Automatic Ladle, ABB 6400 Robot, Four Post Vertical Trim Press, Quench Tank System, QPC Hot Oil Unit
  • Idra PRP Fully Proportional Hydraulic System
  • Top Operator Side Fully Automatic Tie Bar Pulling System
  • Inserted Shot Position (allows for multiple shot positions)
  • Automatic Lubrication System
  • Automatic Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection, Power Operator Side Safety Door
  • Available As a Complete Cell Including: Gas Fired Aluminum Holding Furnace, Advance Products SR 1150 Reciprocating Die Sprayer, Rimrock 405 Automatic Ladle, ABB 6400 Robot, Four Post Vertical Hydraulic Trim Press, Quench Tank System, QPC Hot Oil Unit

Item Specifications for DCM-3306

USMetric
Locking Force:845 tons7,550 kN
Tie Bar Diameter:6.49 inches165 mm
Clearance Between Tie Bars:31.49 x 31.49 inches800 x 800 mm
Die Thickness (minimum - maximum):15.74 - 35.43 inches400 - 900 mm
Die Stroke (maximum):33.46 inches850 mm
Moving Platen Size:50.19 x 50.19 inches1275 x 1275 mm
Shot Positions:Inserted, multi-positionInserted, multi-position
Injection Stroke:23.62 inches600 mm
Maximum Injection Force:75 Tons669 kn
Power (volts/phase/cycle - HP):480/3/60 - 60 HP480/3/60 - 45 kw
Machine Size:29.5 x 8.5 x 11.25 feet9.000 x 2.60 x 3.430 m
Machine Weight:72,600 pounds33,000 kg

Description

Used, Idra Model OL/700 I PRP 700 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Idra PRP Fully Proportional Hydraulic System, Top Operator Side Fully Automatic Tie Bar Pulling System, Inserted Shot Position (allows for multiple shot positions), Automatic Lubrication System, Automatic Motorized Die Height Adjustment, Hydraulic Bumper Plate Ejection, Power Operator Side Safety Door, Available As a Complete Cell Including: Gas Fired Aluminum Holding Furnace, Advance Products SR 1150 Reciprocating Die Sprayer, Rimrock 405 Automatic Ladle, ABB 6400 Robot, Four Post Vertical Hydraulic Trim Press, Quench Tank System, QPC Hot Oil Unit, Allen Bradley PLC 5/30 Solid State Programmable controls, second Hand, DCM-3306

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
