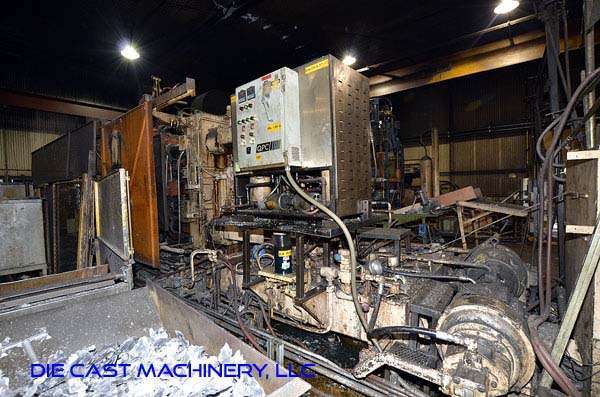

Used HPM Model: D-1000-A 1000 U.S. Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

Used HPM Model: D-1000-A 1000 U.S. Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine1 / 25
StatusSold
ManufacturerHPM
ModelD-1000-A
Size1000 U.S. Tons
Inventory NumberDCM-3305

HPM - D-1000-A 1000 U.S. Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Allen Bradley SLC 5/03 Solid State Programmable Control with PanelView HMI Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-3305.

Features & Accessories

  • Factory Rebuilt in 1998 with All New Shot End Installed - Available as a complete cell with Machine Melting/Holding Furnace, Rimrock Sprayer & Ladler, ABB Robot, 50 ton Trim Press and QPC 24 KW Dual Zone Hot Oil Die Temperature Control Unit
  • Top Operator Side Automatic Tie Bar Puller System with Power Front Split Nut
  • Upgrades Installed During HPM Factory Rebuild Include: All New Hydraulic Powered Motorized Die Height Adjustment System, All New C-Frame Shot End with HPM Servoshot Plus Control Shot System with Close Coupled Piston Accumulators and Multiplier Intensifica
  • Two Auxiliary Hydrauilic Side Core Circuits - One Core Circuit on Moving Platen - One on Fixed Platen
  • Trabon Automatic Lubrication System
  • Available As a Complete Cell Including: Firebrand Aluminum Melting/Holding Furnace, Rimrock Reciprocating Die Sprayer, Rimrock Automatic Ladle, ABB 6400 Robot with M94A controls, 50 Ton Four Post Vertical Trim Press
  • Continuous Outboard Filtering System For Hydrauilcs

Item Specifications for DCM-3305

USMetric
Locking Force:1,000 tons909 tons
Tie Bar Diameter:9 inches228 mm
Clearance Between Tie Bars:43 x 43 inches1092 x 1092 mm
Die Thickness (minimum - maximum):24- 44 inches609 - 1117 mm
Die Stroke (minimum - maximum):18 - 24 inches457 - 609 mm
Moving Platen Size (H x V):68 x 76 inches1727 x 1930 mm
Shot Positions (removable Insert):Center, -9, -12 below centerCenter, -228.6, -304.8 mm
Injection Cylinder Stroke:25 - 32 inches635 - 812 mm
Ejector Stroke & Force:5 inches & 23.6 tons127 mm & 21.4 tons
Main Motor Power:100 HP75 kw
Machine Size:31.1 x 8.6 x 11.5 feet9.48 x 2.62 x 3.51 meters

Description

Used, HPM Model D-1000-A 1000 U.S. Tons Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Top Operator Side Automatic Tie Bar Puller System with Power Front Split Nut, Upgrades Installed During HPM Factory Rebuild Include: All New Hydraulic Powered Motorized Die Height Adjustment System, All New C-Frame Shot End with HPM Servoshot Plus Control Shot System with Close Coupled Piston Accumulators and Multiplier Intensifica, Two Auxiliary Hydrauilic Side Core Circuits - One Core Circuit on Moving Platen - One on Fixed Platen, Trabon Automatic Lubrication System, Available As a Complete Cell Including: Firebrand Aluminum Melting/Holding Furnace, Rimrock Reciprocating Die Sprayer, Rimrock Automatic Ladle, ABB 6400 Robot with M94A controls, 50 Ton Four Post Vertical Trim Press, Continuous Outboard Filtering System For Hydrauilcs, Allen Bradley SLC 5/03 Solid State Programmable Control with PanelView HMI controls, second Hand, DCM-3305

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
