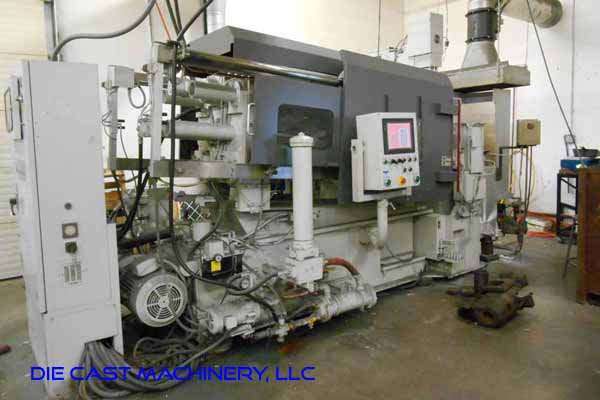

Used Hishinuma Model: CX-150 150 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine

StatusSold
ManufacturerHishinuma
ModelCX-150
Size150 Ton
Inventory NumberDCM-3304

Hishinuma - CX-150 150 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Controls

View Available Zinc Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3304.

Item Specifications for DCM-3304

USMetric
Locking Force:165.23 tons149.89 tons
Tie Bar Diameter:3.34 inches85 mm
Clearance Between Tie Bars:18.11 x 18.11 inches460 x 460 mm
Die Stroke:11.81 inches300 mm
Die Height (minimum - maximum):7.87 - 19.68 inches200 - 500 mm
Injection Force:9.45 tons8.57 tons
Shot Positions:0, 3.9 inches below center0, -100 mm below center
Ejection Force (Push Side):8.76 tons7.95 tons
Ejection Stroke:3.54 inches90 mm
Power:21.12 kW21.12 kW
Machine Size:16.6 x 7.1 x 8.8 feet5070 x 2180 x 2690 mm
Machine Weight:8.81 tons8 tons

Description

Used, Hishinuma Model CX-150 150 Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include:, controls, second Hand, DCM-3304

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
