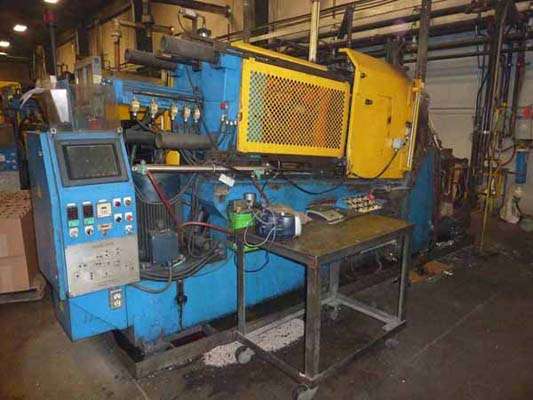

Used Producer Model: DH-P150 175 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine
1 / 4| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Producer |
| Model | DH-P150 |
| Size | 175 Metric Ton |
| Inventory Number | DCM-3584 |
Producer - DH-P150 175 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine, Mitsubishi FX2N PLC Controls
View Available Zinc Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3584.
Features & Accessories
- Fully automated with Producer automatic linear die sprayer and dedicated part extractor
- Hydraulic center and fixed mechanical hydraulic bumper plate ejection
- Two (2) auxiliary hydraulic core circuits, Hydraulic motorized die height
- Air Safety Ratchet
- automatic lubrication
- Hydraulic nozzle clamping, one gooseneck nozzle, plunger shaft and piston
Item Specifications for DCM-3584
| US | Metric | |
| Clamping Force | 193 tons | 175 tons |
| Die Thickness (Minimum - Maximum) | 6 to 20 inches | 152.4 to 508 mm |
| Platen Dimensions (Horizontal x Vertical) | 27.5 x 26.3 inches | 698.5 x 668.02 mm |
| Clearance Between Tie Bars | 17.7 x 16.5 inches | 449.58 x 419.1 mm |
| Tie Bar Diameter | 3.15 inches | 80 mm |
| Closing Stroke | 15 inches | 381 mm |
| Maximum Injection Force | 8.69 tons | 220.7 tons |
| Injection Plunger Diameter | 2.55 inches | 64.77 mm |
| Injection Positions: | 3.93 inches | 99.82 mm |
| Ejector Stroke - Force | 3.5 inches - 8.25 tons | 88.9 mm - 7.48 tons |
| Melting Pot capacity | 1100 pounds | 498 kg |
| Weight of Machine | 22,000 pounds | 9979 kg |
Description
Used, Producer Model DH-P150 175 Metric Ton Horizontal Hot Chamber Zinc (Zamak) High Pressure Die Casting Machine For_Sale, Features Include: Fully automated with Producer automatic linear die sprayer and dedicated part extractor, Hydraulic center and fixed mechanical hydraulic bumper plate ejection, Two (2) auxiliary hydraulic core circuits, Hydraulic motorized die height, Air Safety Ratchet, automatic lubrication, Hydraulic nozzle clamping, one gooseneck nozzle, plunger shaft and piston, Mitsubishi FX2N PLC controls, second Hand, DCM-3584
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
