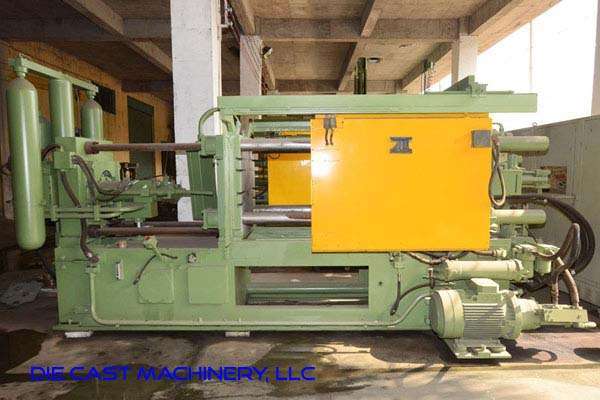

Used Idra Model: OL 320 320 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerIdra
ModelOL 320
Size320 Metric Ton
Inventory NumberDCM-3266

Idra - OL 320 320 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, Siemens Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3266.

Item Specifications for DCM-3266

USMetric
Locking Force:388 Tons3450 kN
Tie Bar Diameter:4.5 inches115 mm
Clearance Between Tie Bars:22.4 x 22.4 inches570 x 570 mm
Die Thickness (Minimum to Maximum):7.9 - 25.6 inches200 - 650 mm
Moving Platen Stroke:22.4 inches570 mm
Platen Dimensions:34.6 x 34.6 inches880 x 880 mm
Maximum Injection Force:42.1 Tons375 kN
Ejection Force:20 Tons180 kN
Motor Rating:29.5 HP22 KW
Machine Size:19 x 5.8 x 8.5 feet5.8 x 1.8 x 2.6 m
Machine Weight:30,860 pounds13,997 KG

Description

Used, Idra Model OL 320 320 Metric Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include:, Siemens controls, second Hand, DCM-3266

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
