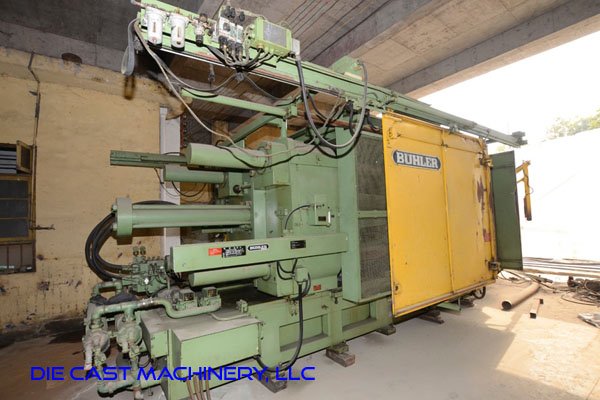

Used Buhler Model: H-400-B V5 400 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 20| Status | Available |
|---|---|
| We offer for sale, subject to availability, prior sale and the terms listed below: | |
| Manufacturer | Buhler |
| Model | H-400-B V5 |
| Size | 400 Metric Ton |
| Inventory Number | DCM-3265 |
Buhler - H-400-B V5 400 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler Datacess Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3265.
Features & Accessories
- Buhler Datacess Control
- Hydraulic Bumper Plate Ejection System
- Inserted (adjustable) Shot Position
- Automatic Lubrication System
- Motorized Die Height Adjustment
Item Specifications for DCM-3265
| US | Metric | |
| Rated Tonnage | 440 tons | 400 tons |
| Tie Bar Diameter | 4.72 inches | 120 mm |
| Clearance Between Tie bars | 25.2 x 25.2 inches | 640 x 640 mm |
| Fixed Platen Size (H x V) | 38.9 x 44.5 inches | 990 x 1130 mm |
| Moving Platen Size (H x V) | 38.9 x 38.9 inches | 990 x 990 mm |
| Die Thickness (min. - max.) | 12.99 - 41.34 inches | 330 - 1050 mm |
| Die Stroke | 25.2 inches | 640 mm |
| Ejection Stroke | 6.89 inches | 175 mm |
| Ejection Force | 24 tons | 240 kN |
| Motor Size | 40 hp | 30 kw |
| Machine Size (L x W x H) | 23.6 x 8.2 x 7.5 feet | 7.2 x 2.5 x 2.3 meters |
| Machine Weight | 35,273 pounds | 16,000 kg |
Video
Description
Used, Buhler Model H-400-B V5 400 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler Datacess Control, Hydraulic Bumper Plate Ejection System, Inserted (adjustable) Shot Position, Automatic Lubrication System, Motorized Die Height Adjustment, Buhler Datacess controls, second Hand, DCM-3265
PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
