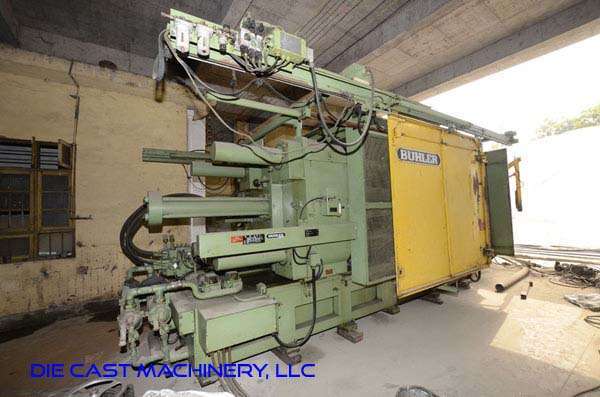

Used Buhler Model: H-800-B 980 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerBuhler
ModelH-800-B
Size980 Metric Ton
Inventory NumberDCM-3264

Buhler - H-800-B 980 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Buhler Datacess Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3264.

Features & Accessories

  • Buhler Datacess Control
  • Hydraulic Bumper Plate Ejection System
  • Inserted (adjustable) Shot Position
  • Automatic Lubrication System
  • Motorized Die Height Adjustment

Item Specifications for DCM-3264

USMetric
Rated Tonnage1080 tons980 tons
Tie Bar Diameter7.09 inches180 mm
Clearance Between Tie bars35.4 x 35.4 inches900 x 900 mm
Fixed Platen Size (H x V)55.5 x 62.6 inches1410 x 1592 mm
Moving Platen Size (H x V)55.5 x 55.4 inches1410 x 1408 mm
Die Thickness (min. - max.)12.99 - 41.34 inches330 - 1050 mm
Die Stroke35.43 inches900 mm
Ejection Stroke6.89 inches175 mm
Ejection Force38 tons34 tons
Motor Size73.4 hp55 kw
Machine Size (L x W x H)32.22 x 11.55 x 10.83 feet9.82 x 3.52 x 3.3 meters
Machine Weight90,389 pounds41,000 kg

Description

Used, Buhler Model H-800-B 980 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Buhler Datacess Control, Hydraulic Bumper Plate Ejection System, Inserted (adjustable) Shot Position, Automatic Lubrication System, Motorized Die Height Adjustment, Buhler Datacess controls, second Hand, DCM-3264

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
