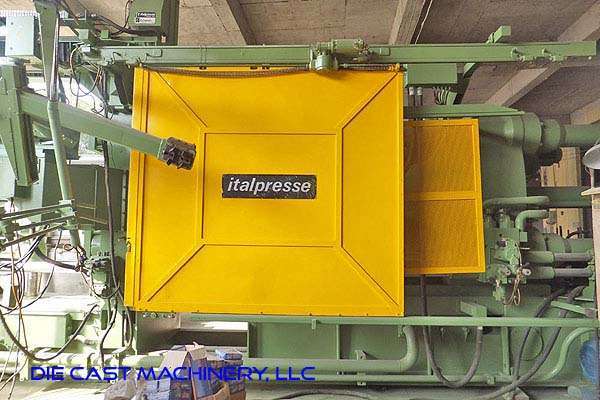

Used Italpresse Model: IP/1250-SC 1250 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine
1 / 24| Status | Sold |
|---|---|
| Manufacturer | Italpresse |
| Model | IP/1250-SC |
| Size | 1250 Metric Ton |
| Inventory Number | DCM-3263 |
Italpresse - IP/1250-SC 1250 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Siemens S5 Controls
View Available Cold Chamber Die Casting Machines
Questions? Call (847) 360-9170 and mention DCM-3263.
Features & Accessories
- With Acheson Sprayer
- Italpresse SC Shot Control using Siemens S-5 PLC Controls
- Hydraulic Bumper Plate Ejection System
- Automatic Motorized Die Height Adjustment
- Inserted Shot Position (allows for multiple shot positions)
- Central Automatic Lubrications System
- Italpresse Proportional Hydraulics
Item Specifications for DCM-3263
| US | Metric | |
| Locking Force: | 1350 tons | 13,451 kN |
| Tie Bar Diameter: | 8.66 inches | 219 mm |
| Clearance Between Tie Bars: | 39.76 x 39.76 inches | 1010 x 1010 mm |
| Die Thickness (minimum - maximum): | 18.70 - 47.24 inches | 475- 1200 mm |
| Die Stroke (maximum): | 41.33 inches | 1050 mm |
| Moving Platen Size: | 64.96 x 65.36 inches | 1649 x 1660 mm |
| Shot Positions: | center, -9.84, -19.68 inches | center, -249, -499 mm |
| Shot Stroke: | 29.13 inches | 579 mm |
| Central Ejection Stroke: | 9.44 inches | 179 mm |
| Power: | 480/3/60 - 50 HP | 480/3/60 - 37 kw |
| Machine Size: | 12.2 x 36.2 x 12.10 feet | 3.72 x 11.03 x 3.69 m |
| Machine Weight: | 123,299 pounds | 55,927 kg |
Description
Used, Italpresse Model IP/1250-SC 1250 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Italpresse SC Shot Control using Siemens S-5 PLC Controls, Hydraulic Bumper Plate Ejection System, Automatic Motorized Die Height Adjustment, Inserted Shot Position (allows for multiple shot positions), Central Automatic Lubrications System, Italpresse Proportional Hydraulics, Siemens S5 controls, second Hand, DCM-3263
