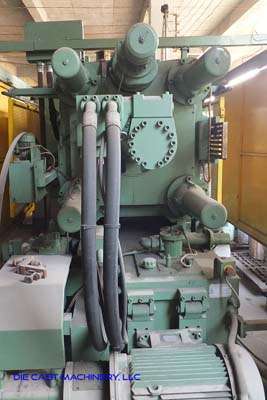

Used Italpresse Model: IP 550/SC 550 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine

StatusAvailable
We offer for sale, subject to availability, prior sale and the terms listed below:
ManufacturerItalpresse
ModelIP 550/SC
Size550 Metric Ton
Inventory NumberDCM-3261

Italpresse - IP 550/SC 550 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine, Siemens S5 Controls

View Available Cold Chamber Die Casting Machines

Questions? Call (847) 360-9170 and mention DCM-3261.

Features & Accessories

  • Italpresse SC Shot Control using Siemens S-5 PLC Controls
  • Top Operator Side Fully Automatic Tie Bar Pulling System
  • Hydraulic Bumper Plate Ejection System
  • Automatic Motorized Die Height Adjustment
  • Inserted Shot Position (allows for multiple shot positions)
  • Italpresse Fully Proportional Hydraulics

Item Specifications for DCM-3261

USMetric
Locking Force:541 tons5,395 kN
Tie Bar Diameter:6.49 inches165 mm
Clearance Between Tie Bars:27.17 x 27.17 inches690 x 690 mm
Die Thickness (minimum - maximum):15.15 - 37.00 inches385 - 940 mm
Die Stroke (maximum):14.17 inches630 mm
Moving Platen Size:42.32 x 43.30 inches1075 x 1100 mm
Shot Positions:Inserted, multi-positionsInserted, multi-positions
Shot Stroke:22.8 inches580 mm
Central Ejection Stroke:6.7 inches170 mm
Power:480/3/60 - 50 HP480/3/60 - 37 kw
Machine Size (L x W x H):25.09 x 9.67 x 8.20 feet7.7 x 2.9 x 2.5 meters
Machine Weight:52,900 pounds24,000 kg

Description

Used, Italpresse Model IP 550/SC 550 Metric Ton Horizontal Cold Chamber Aluminum/Magnesium Capable High Pressure Die Casting Machine For_Sale, Features Include: Italpresse SC Shot Control using Siemens S-5 PLC Controls, Top Operator Side Fully Automatic Tie Bar Pulling System, Hydraulic Bumper Plate Ejection System, Automatic Motorized Die Height Adjustment, Inserted Shot Position (allows for multiple shot positions), Italpresse Fully Proportional Hydraulics, Siemens S5 controls, second Hand, DCM-3261

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
