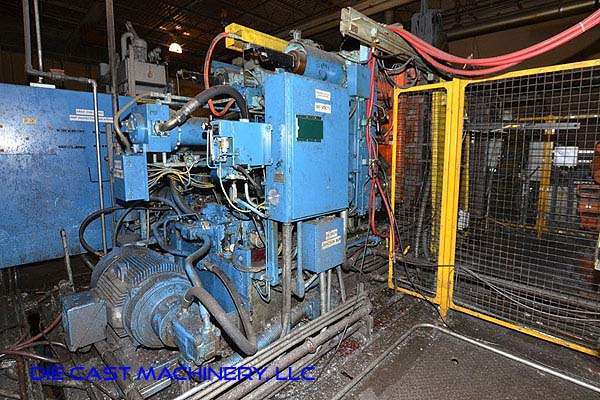

Used Prince Model: 836 CCA 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine

Used Prince Model: 836 CCA 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine1 / 10
StatusSold
ManufacturerPrince
Model836 CCA
Size850 Ton
Inventory NumberDCM-3214

Prince - 836 CCA 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine, GE-Fanuc PLC 90/90 Controls

View Available Cold Chamber Die Casting Machines

See available Cold Chamber Die Casting MachinesPrint PDF

Questions? Call (847) 360-9170 and mention DCM-3214.

Features & Accessories

  • Air Safety Ratchet
  • Twin Cylinder Hydraulic Bumper Plate Ejection System
  • Hydraulic Motorized Die Height Adjustment System and Trabon Automatic Lubrication System
  • Power Operator and Manual Helper Side Safety Door
  • Individual Tie Bar Adjustment System and Electronic Strain Gauges
  • Three (3) Auxiliary Hydraulic Core Circuits - Two (2) on Moving and One (1) on Stationary

Item Specifications for DCM-3214

USMetric
Rated Tonnage:850 tons772 tons
Tie Bar Diameter:7.5 inches190 mm
Clearance between Tie Bars:36.5 x 36.5 inches927 x 927 mm
Front Platen Size (T x W x H):12.75 x 60 x 70 inches323 x 1524 x 1778 mm
Moving Platen Size (T x W x H):11.75 x 60 x 60 inches298 x 1524 x 1524 mm
Die Thickness (minimum to maximum):20 - 40 inches508 - 1016 mm
Die Stroke:22 inches558 mm
Intensification:Piston BottlePiston Bottle
Shot Position Standard:Center and 9 inches belowCenter and 228 mm below
Shot Cylinder Stroke:21 - 27 inches533 - 685 mm
Motor Size:75 HP55.95 Kw
Machine Size (L x W x H) and Weight:29 x 8 x 11 feet and 84,000 pounds8.68 x 2.38 x 3.2 m and 38181.8 kg

Optional Equipment Available with Machine at Additional Cost (Click on item to view)

Description

Used, Prince Model 836 CCA 850 Ton Horizontal Cold Chamber Aluminum High Pressure Die Casting Machine For_Sale, Features Include: Air Safety Ratchet, Twin Cylinder Hydraulic Bumper Plate Ejection System, Hydraulic Motorized Die Height Adjustment System and Trabon Automatic Lubrication System, Power Operator and Manual Helper Side Safety Door, Individual Tie Bar Adjustment System and Electronic Strain Gauges, Three (3) Auxiliary Hydraulic Core Circuits - Two (2) on Moving and One (1) on Stationary, GE-Fanuc PLC 90/90 controls, second Hand, DCM-3214

PURCHASER'S (Buyer's) RESPONSIBILITY AND INDEMNITY: Used machines, equipment or any part thereof, may not incorporate approved activating mechanisms, operator safety devices or safety guards as required by OSHA or otherwise. It shall be a Purchaser's (Buyer's) responsibility to ensure that any and all merchandise or equipment purchased from Die Cast Machinery, LLC or its affiliates is installed and operated in a proper and safe manner. Purchaser (Buyer) also acknowledges that it may have to install or change guards, safeties, warnings or other components to ensure that the merchandise or machines purchased will conform to all laws, codes, regulations, ordinances, statutes, insurance requirements and industry standards. Purchaser agrees to defend, indemnify and hold harmless Die Cast Machinery, LLC from and against all suits, claims, costs, damages and expenses, including, but not limited to, reasonable attorneys' fees, arising out of, or in connection with, the transportation, purchase, ownership, or use of the merchandise or equipment sold hereunder. Information has been obtained from sources deemed reliable, buyers should avail themselves of the opportunity to inspect the items before purchase.
